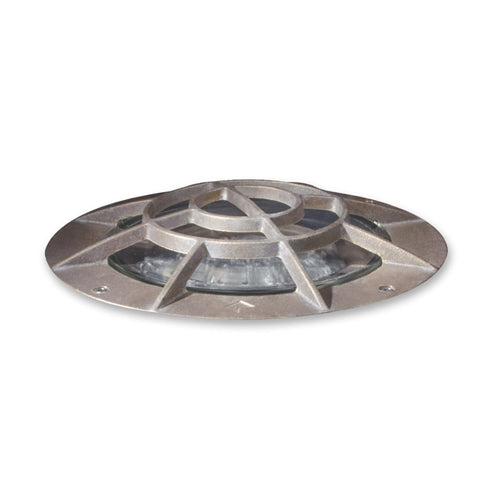

Kim Lighting LTV83RGSP12L3KUVPLRCA83 Landscape In-Grade Light vault 8 Rock Guard, 7-15/16" Diamater, Spot Distribution, 12 LEDs, 3000K, 120-277V, Prismatic Lens, with Rebar Cage Anchor

PRODUCT FEATURES

• Sealed IP68 LED light engine
• Bluetooth connectivity for remote control aiming and dimming
• Free Mobile App for Android and iOS
• Easy to install and pair devices
• Advanced thermal management provides long life in excess of 100,000+ hours
• Runs cool to the touch - less than 40°C

PRODUCT SPECIFICATIONS

Housing

• Pour Box rough-in housing for installation below grade.
• High temperature UV resistant thermal plastic, 3/16” minimum wall, black.
• Includes a splice box with molded plastic splice cover and silicone gasket.
• Three 1” NPT in bottom for through wiring on LTV81 and LTV82.
• Two 1” NPT in bottom for through wiring on LTV83. 107 cu. in. splice area for LTV81.
• 107 cu. in. splice area for LTV81.
• 52 cu. in. splice area for LTV82.
• 24 cu. in. splice area for LTV83.

Component Module

• One-piece impregnated cast bronze, fully sealed component module secured to the face trims from the underside.
• A high temperature, anti-siphon, IP67 sealed cable extends from the component module to the splice box inside the housing.
• The fully assembled component module is secured to the housing with (4) 1/4-20 tamper-resistant high grade stainless steel fasteners.

Face Trim One-piece cast bronze lens ring fastened to the component module from the underside shall provide a raised rib pattern away from the glass lens as a deterrent to vandalism.

Optical Modules

• Optical modules are adjustable up to 15° utilizing a Bluetooth enabled motor assembly.
• Spot (SP)
• Narrow Flood (NF)
• Wall Wash (WW)

Bluetooth

• Integral Bluetooth module used to adjust optics and dim fixture to desired setting when paired with KIM LTV8 Remote App via cellular/ tablet device.
• Fully qualified Bluetooth 1.1, 1.2, 2.0, 2.1. Bluetooth v2.0+EDR compatible with Android devices running Android Gingerbread API level 9 forward. Bluetooth 4.0 LE compatible with iOS devices - iPhone 4S and later, 5th generation iPod touch, the iPad Mini and the 3rd generation and later of the full size iPad with iOS 5 or later.
• Bluetooth Apps are available for Apple iOS and Google Android mobile devices and are downloadable via the internet at Apple App Store or Google Play.

Lens 5/16” thick clear UV stabilized acrylic and silicone gasket is retained securely within the component module.

Options

• Prismatic Lens (PL)
• Rebar Cage Anchor (RCA8x).


Electrical Equipment All electronic components are UL and CSA recognized and mounted directly to the component module for maximum heat dissipation and modularity. Driver is IP67 with -30°C minimum temperature rating.

Drive-Over Durability When installed in concrete, fixture will withstand drive-over by vehicles weighing up to 5,000 lbs.

Certification

• (UL1598, UL8750). 25°C ambient operation.
• SASO Certified for LTV82/83.
