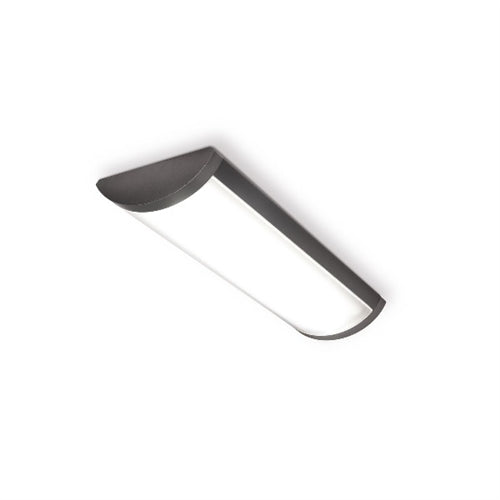

• Kim PVNT-3-3-25-30K8-NDM-UNV-C-WHT-EM 3' Prevent Linear LED Light, 25W 4000 Lumens, 3000K, 80 CRI, No Banding, Non-Dimming, 120-277V, Captive Endcap, White Matte Textured, 10W Battery
1 1

Kim PVNT-3-3-25-30K8-NDM-UNV-C-WHT-EM 3' Prevent Linear LED Light, 25W 4000 Lumens, 3000K, 80 CRI, No Banding, Non-Dimming, 120-277V, Captive Endcap, White Matte Textured, 10W Battery

Kim PVNT-3-3-25-30K8-NDM-UNV-C-WHT-EM 3' Prevent Linear LED Light, 25W 4000 Lumens, 3000K, 80 CRI, No Banding, Non-Dimming, 120-277V, Captive Endcap, White Matte Textured, 10W Battery

Price: $1,343.60
Price: $1,343.60

MODEL: Kim-PVNT-21
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Polyester epoxy powdercoat finish
  • Optional tamper resistant locking cover mechanism prevents access to all fasteners
  • All fasteners are Stainless Steel. Tamper resistant (TR) fasteners are included with captive cover
  • Marine grade low copper aluminum body
  • Impact resistant diffuse polycarbonate lens
  • 156" thick
INSTALLATION
  • Surface mount, corner mount, and pendant mount options
  • Continuous row mount for pendant, straight runs and corner installations. Unlit center piece connector options available
  • Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury
ELECTRICAL
  • Universal voltage, 120 through 277V with a ±10% tolerance. Driver is UL Listed
  • High voltage configurations, 347/480. Driver has a 0-10V dimming interface for multi-level illumination options. Driver is UL Listed
  • Drivers have greater than a 0.9 power factor, less than 20% harmonic distortion, and be suitable for operation in -40°C to 40°C ambient environments
  • Luminaires are capable of operating at 100% brightness in a 40°C environment. Both driver and optical array have integral thermal protection that will dim the luminaire upon detection of temperatures in excess of 85°C
  • Dimming range from 1% to 100% through the use of standard 0-10V interface on the programmable driver
  • Modular wiring harness in the service area provides user access to the dimming circuitry
  • Optional factory programmed dimming profile
  • Surge protection: 10kA in parallel
  • SF for 120, 277, 347 Line volts; DF for 208, 240, 480 Line volts
  • Wiring: No. 18AWG rated 75°C wet rating, 90°C dry rating
CERTIFICATIONS
  • Listed to UL1598 and CSA C22.2#250.0-24 for wet locations and 40˚C ambient temperatures
  • ADA compliant
  • UL 924 Standard for Emergency Lighting and Power Equipment
  • IP66 rated
  • IK10 Impact resistant per EN 62262 and UV stable polycarbonate lens
  • ANSI C136.31-2010 Vibration tested and compliant 3G
  • ANSI C78.377.2008 Compliant
  • ANSI C82.77.2002 Compliant
  • RoHS compliant
WARRANTY
  • 5 year warranty
