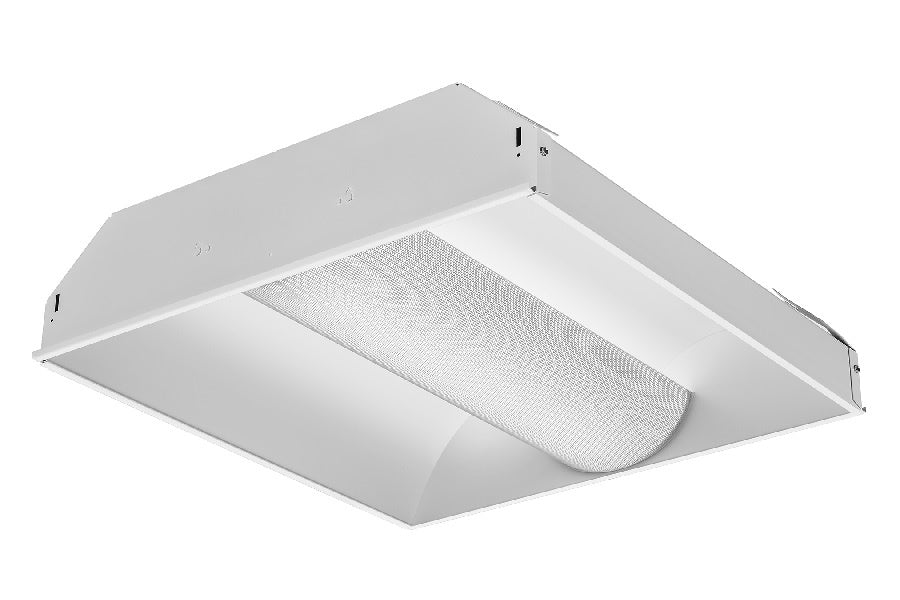

Lithonia 2AVL2 ST 20L MDR EZ1 LP840 N100 2'x2' LED Recessed Troffer, Screw Slot, 2000 Lumens, Metal Diffuser, Round Holes, eldoDims to 1%, 4000KnLight without Lumen Management
Lithonia 2AVL2 ST 20L MDR EZ1 LP840 N100 2'x2' LED Recessed Troffer, Screw Slot, 2000 Lumens, Metal Diffuser, Round Holes, eldoDims to 1%, 4000KnLight without Lumen Management
Regular price
Price:
$271.50
Regular price
Price:
Sale price
$271.50
Unit price
per
MODEL: Lithonia-2AVL2-106239
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
View full details
description
INTENDED USE -- The Avante 2x2 is a general lighting luminaire for large spaces including open offices, circulation areas, classrooms, libraries, cafeterias, airport ticketing and wait areas, and numerous other commercial applications. Static or air function available. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic Environmental Compatibility table for suitable uses.
CONSTRUCTION -- Housing is gloss white enamel on cold-rolled steel. All edges hemmed or rounded. All shieldings pivot on light traps and swing down for easy access. Molded light traps prevent light leaks between shielding and end-plates. All air and screw slot units supplied with screw-on tee bar clips. Driver access is from below.
OPTICS -- Matte white polyester powder paint finished reflectors provide uniform light distribution. All diffusers control direct light distribution and glare by shielding LEDs from direct view. Metal diffuser staggered round holes (MDR) 52% open perforated metal with .075" diameter holes backed with white acrylic diffuser.
Straight blade louver (SBL) sides of perforated metal with staggered round holes and solid blade louvered center. Sides and louver backed with white acrylic diffuser.
Acrylic diffuser prismatic lens (ADP) extruded acrylic lens backed with white acrylic diffuser.
ELECTRICAL-- Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).
eldoLED driver options deliver choice of dimming range and choice of control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.
Optional integrated nLight controls make each luminaire addressable - allowing it to digitally communicate with other nLight-enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply connect all the nLight-enabled control devices and the AVL luminaires using standard Cat-5 cabling. Unique plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.
Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.
Driver disconnect provided where required to comply with US and Canadian codes.
INSTALLATION -- Trims available for standard 1" and 9/16" tee bar or screw slot grids.
Fixtures can be row mounted end-to-end. Suitable for damp locations.
Drywall ceiling adapters available.
LISTINGS -- CSA certified to meet US and Canadian standards. IC rated.
Avante is covered by one or more of the following patents: 5,988,829; 399,586; 411,641; 413,402; 2,212,513; 87,513.
WARRANTY -- 5-year limited warranty.
CONSTRUCTION -- Housing is gloss white enamel on cold-rolled steel. All edges hemmed or rounded. All shieldings pivot on light traps and swing down for easy access. Molded light traps prevent light leaks between shielding and end-plates. All air and screw slot units supplied with screw-on tee bar clips. Driver access is from below.
OPTICS -- Matte white polyester powder paint finished reflectors provide uniform light distribution. All diffusers control direct light distribution and glare by shielding LEDs from direct view. Metal diffuser staggered round holes (MDR) 52% open perforated metal with .075" diameter holes backed with white acrylic diffuser.
Straight blade louver (SBL) sides of perforated metal with staggered round holes and solid blade louvered center. Sides and louver backed with white acrylic diffuser.
Acrylic diffuser prismatic lens (ADP) extruded acrylic lens backed with white acrylic diffuser.
ELECTRICAL-- Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).
eldoLED driver options deliver choice of dimming range and choice of control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.
Optional integrated nLight controls make each luminaire addressable - allowing it to digitally communicate with other nLight-enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply connect all the nLight-enabled control devices and the AVL luminaires using standard Cat-5 cabling. Unique plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.
Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.
Driver disconnect provided where required to comply with US and Canadian codes.
INSTALLATION -- Trims available for standard 1" and 9/16" tee bar or screw slot grids.
Fixtures can be row mounted end-to-end. Suitable for damp locations.
Drywall ceiling adapters available.
LISTINGS -- CSA certified to meet US and Canadian standards. IC rated.
Avante is covered by one or more of the following patents: 5,988,829; 399,586; 411,641; 413,402; 2,212,513; 87,513.
WARRANTY -- 5-year limited warranty.
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
