Home > Lithonia Lighting > Lithonia 2ESL4 48L MVOLT EZ1 LP835 2'x4' Louvered LED Troffer, 4800 Lumens, 120-277V, eldoLED Dims to 1%, 0-10V Dimming, 82 Cri, 3500K, no nLight

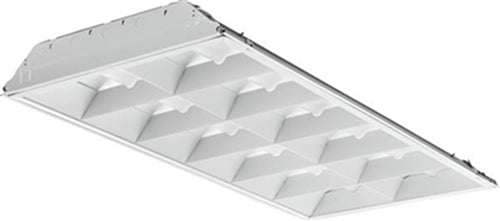

Lithonia 2ESL4 48L MVOLT EZ1 LP835 2'x4' Louvered LED Troffer, 4800 Lumens, 120-277V, eldoLED Dims to 1%, 0-10V Dimming, 82 Cri, 3500K, no nLight
Lithonia 2ESL4 48L MVOLT EZ1 LP835 2'x4' Louvered LED Troffer, 4800 Lumens, 120-277V, eldoLED Dims to 1%, 0-10V Dimming, 82 Cri, 3500K, no nLight
Regular price
Price:
$457.88
Regular price
Price:
Sale price
$457.88
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
2ESL4 provides a high-performance LED energy-saving alternative to fluorescent and parabolic fixtures. Used in place of parabolics, 2ESL4 is ideal for retail, educational, and commercial applications.
CONSTRUCTION
Robust design, precision-tooling and automated assembly combine to create the industry's strongest louver. Mechanical light seal requires no foam gasketing. Integral T-bar clips secure fixture to T-bar system. Housing formed of cold-rolled steel.
INTENDED USE
2ESL4 provides a high-performance LED energy-saving alternative to fluorescent and parabolic fixtures. Used in place of parabolics, 2ESL4 is ideal for retail, educational, and commercial applications.
CONSTRUCTION
Robust design, precision-tooling and automated assembly combine to create the industry's strongest louver. Mechanical light seal requires no foam gasketing. Integral T-bar clips secure fixture to T-bar system. Housing formed of cold-rolled steel.
Prior to fabrication, housing and reflector are coated with a proprietary paint blend and die formed for dimensional consistency.
Louver painted after fabrication with low gloss, high reflectivity polyester powder coat.
OPTICS
Mechanical shielding is provided with angled length blades, and linear faceted cross baffles.
Contoured housing efficiently directs light downward. Lamp cut-out maximizes shielding even in shallow plenum applications and softens light distribution to deliver a balanced amount of light to both vertical and horizontal surfaces.
ELECTRICAL
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000).
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flickerfree, low-current inrush, 89% efficiency and low EMI.
Optional integrated nLight controls make each luminaire addressable -- allowing it to digitally communicate with other nLight-enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply connect all the nLight-enabled control devices and the 2ESL4 luminaires using standard Cat-5 cabling. Unique plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.
Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.
Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.
Driver disconnect provided where required to comply with US and Canadian codes.
Enabled with Atrius -- Select models of this product line are enabled with Atrius, making them part of the Atrius Sensory Network and ready to deliver valuable data and connectivity to the Atrius Platform.
For more information concerning Atrius solutions, please refer to www.acuitybrands.com/Atrius.
LISTINGS
CSA listing.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
BUY AMERICAN ACT
Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
Louver painted after fabrication with low gloss, high reflectivity polyester powder coat.
OPTICS
Mechanical shielding is provided with angled length blades, and linear faceted cross baffles.
Contoured housing efficiently directs light downward. Lamp cut-out maximizes shielding even in shallow plenum applications and softens light distribution to deliver a balanced amount of light to both vertical and horizontal surfaces.
ELECTRICAL
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000).
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flickerfree, low-current inrush, 89% efficiency and low EMI.
Optional integrated nLight controls make each luminaire addressable -- allowing it to digitally communicate with other nLight-enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply connect all the nLight-enabled control devices and the 2ESL4 luminaires using standard Cat-5 cabling. Unique plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.
Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.
Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.
Driver disconnect provided where required to comply with US and Canadian codes.
Enabled with Atrius -- Select models of this product line are enabled with Atrius, making them part of the Atrius Sensory Network and ready to deliver valuable data and connectivity to the Atrius Platform.
For more information concerning Atrius solutions, please refer to www.acuitybrands.com/Atrius.
LISTINGS
CSA listing.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
BUY AMERICAN ACT
Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
