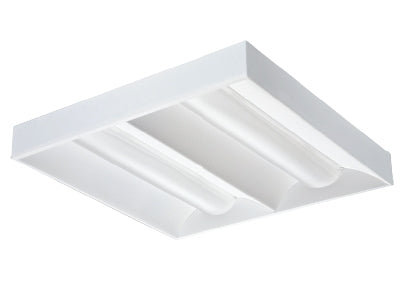

Lithonia 2RTL2 CAS 40L 347 EXAB LP840 2' x 2' LED Recessed Volumetric Light, Central Air Slots, 4000 Lumens, 347V, Dims to Dark, Xpoint Wireless Enabled, No Controls
Lithonia 2RTL2 CAS 40L 347 EXAB LP840 2' x 2' LED Recessed Volumetric Light, Central Air Slots, 4000 Lumens, 347V, Dims to Dark, Xpoint Wireless Enabled, No Controls
Regular price
Price:
$540.80
Regular price
Price:
Sale price
$540.80
Unit price
per
MODEL: Lithonia-2RTL-2X2-25529
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
The RTL combines digital LED lighting and controls technologies with patented highperformance optical design to offer the most advanced luminaire for general-ambient lighting applications. High-efficacy light engine delivers long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable. A typically configured RTL features a Unified Glare Rating (UGR)
INTENDED USE
The RTL combines digital LED lighting and controls technologies with patented highperformance optical design to offer the most advanced luminaire for general-ambient lighting applications. High-efficacy light engine delivers long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable. A typically configured RTL features a Unified Glare Rating (UGR)
starting at 18, UGR data available on page 3.
CONSTRUCTION
Rugged, one-piece cold-rolled steel reflector assembly with embossed facets. Coated polyester powder-paint after fabrication.
Rigid structure with ballast box and end plates. End plates include integral T-bar clips. Impact-modified acrylic prismatic refractor.
Luminaires may be mounted end-to-end and continuously wired.
OPTICS
Volumetric illumination is delivered by creating an optimal mix of light to walls, partitions, vertical and horizontal work surfaces ? rendering the interior space, objects and occupants in a more balanced, complementary luminous environment.
Light distribution is carefully controlled at high angles, providing just enough luminous flux to create the volumetric effect.
Linear faceted reflector cavity softens and distributes light into the space while minimizing luminous contrast between the fixture and ceiling.
Sloped end plates provide a smooth, luminous transition between fixture and ceiling while enhancing the perception of fixture depth.
ELECTRICAL
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. RTL is rated to deliver L90 performance for 60,000 hours.
Optional integrated nLight controls make each luminaire addressable - allowing it to digitally communicate with other nLight enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply connect all the nLight enabled control devices and the RTL luminaires using standard CAT-5 cabling. Unique plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.
Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.
Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.
eldoLED driver options deliver choice of dimming range, and choice of control, while assuring flicker-free, low current inrush, 89% efficiency and low EMI.
Driver disconnect provided where required to comply with US and Canadian codes.
INSTALLATION
Drivers and internal components accessed via plenum. Driver tray may be removed from fixture during service. Suitable for damp location.
Maintenance: LED boards include plug-in connectors for easy replacement or servicing.
LISTINGS
CSA Certified to meet U.S. and Canadian standards. IC rated.
Tested to LM80 standards. IC rated.
DesignLights Consortium? (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Protected by one or more of US Patent Nos. 7,229,192; D541,467; D541,468; D544,633; D544,634; D544,992. D544,933 and additional patents pending.
GOVERNMENT PROCUREMENT
BAA - Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA - Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
CONSTRUCTION
Rugged, one-piece cold-rolled steel reflector assembly with embossed facets. Coated polyester powder-paint after fabrication.
Rigid structure with ballast box and end plates. End plates include integral T-bar clips. Impact-modified acrylic prismatic refractor.
Luminaires may be mounted end-to-end and continuously wired.
OPTICS
Volumetric illumination is delivered by creating an optimal mix of light to walls, partitions, vertical and horizontal work surfaces ? rendering the interior space, objects and occupants in a more balanced, complementary luminous environment.
Light distribution is carefully controlled at high angles, providing just enough luminous flux to create the volumetric effect.
Linear faceted reflector cavity softens and distributes light into the space while minimizing luminous contrast between the fixture and ceiling.
Sloped end plates provide a smooth, luminous transition between fixture and ceiling while enhancing the perception of fixture depth.
ELECTRICAL
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. RTL is rated to deliver L90 performance for 60,000 hours.
Optional integrated nLight controls make each luminaire addressable - allowing it to digitally communicate with other nLight enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply connect all the nLight enabled control devices and the RTL luminaires using standard CAT-5 cabling. Unique plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.
Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.
Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.
eldoLED driver options deliver choice of dimming range, and choice of control, while assuring flicker-free, low current inrush, 89% efficiency and low EMI.
Driver disconnect provided where required to comply with US and Canadian codes.
INSTALLATION
Drivers and internal components accessed via plenum. Driver tray may be removed from fixture during service. Suitable for damp location.
Maintenance: LED boards include plug-in connectors for easy replacement or servicing.
LISTINGS
CSA Certified to meet U.S. and Canadian standards. IC rated.
Tested to LM80 standards. IC rated.
DesignLights Consortium? (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Protected by one or more of US Patent Nos. 7,229,192; D541,467; D541,468; D544,633; D544,634; D544,992. D544,933 and additional patents pending.
GOVERNMENT PROCUREMENT
BAA - Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA - Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
