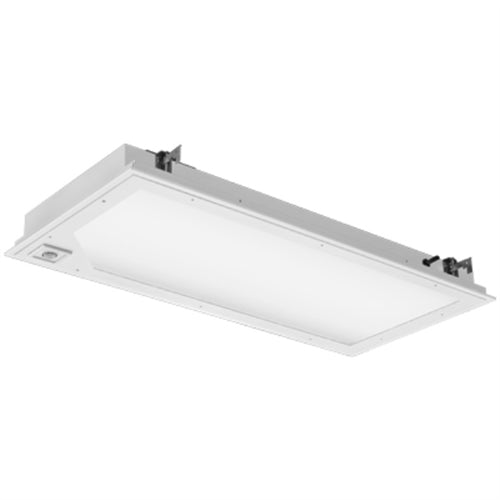

Lithonia 2SRTL G L48 10000LM IAW AFL MVOLT EZ1 35K 90CRI DWAM 2' Wide LED Troffer, Grid Trim, 10000 Lumens, Aluminum Door Frame, Acrylic Frosted Diffuser, 120-277V, eldoLED 0-10V, 3500K, 90 CRI, Antimicrobial White
Lithonia 2SRTL G L48 10000LM IAW AFL MVOLT EZ1 35K 90CRI DWAM 2' Wide LED Troffer, Grid Trim, 10000 Lumens, Aluminum Door Frame, Acrylic Frosted Diffuser, 120-277V, eldoLED 0-10V, 3500K, 90 CRI, Antimicrobial White
Regular price
Price:
$1,188.39
Regular price
Price:
Sale price
$1,188.39
Unit price
per
MODEL: Lithonia-2SRTL-110628
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE -- Recessed LED troffer for general illumination of Cleanroom ISO5-9 (Class 100 – 100,000) environment. Typical applications include healthcare, pharmaceuticals, electronic manufacturing, and other contamination-controlled environments. Certain airborne contaminants can diminish the integrity of
INTENDED USE -- Recessed LED troffer for general illumination of Cleanroom ISO5-9 (Class 100 – 100,000) environment. Typical applications include healthcare, pharmaceuticals, electronic manufacturing, and other contamination-controlled environments. Certain airborne contaminants can diminish the integrity of
acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION -- Housing is made from 20-gauge cold rolled steel. Door frame is .060 painted aluminum and lens is diffused acrylic. Gasket is closed cell silicone.
Finish: All CRS (cold rolled steel) and aluminum parts are finished with electrostatically deposited, thermally set, polyester powder paint after fabrication. Door frame and enclosure finish is NSF-listed.
OPTICS -- Long-life LEDs, coupled with high-efficiency drivers, provide extended service life.
Lumen maintenance of L80>60,000 hours, L70>100,000 hours.
ELECTRICAL -- Thermally protected, resetting, Class TL, UL listed, CSA certified driver is standard.
LED driver delivers dimming from a 0-10V control signal. Dims to 1% standard.
Luminaire Surge Protection Level: Designed to withstand up to 6kV/3kA per ANSI C82.77-5-2015.

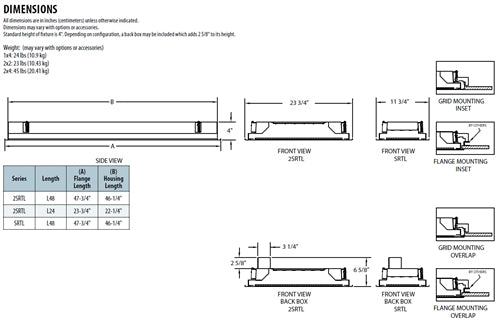

INSTALLATION -- Lay-in grid or in-ceiling sheet rock installation using swing-arms with range from 1" to 2" grid height. See drawings for other critical dimensions. Additional sealing method required for sheet rock mounted overlap door. Refer to installation instructions for more information. Swing-arms are not intended to secure fixture without additional support. Line voltage supply wiring entrance opening is 7/8".
LISTINGS -- CSA certified to meet U.S. and Canadian standards (UL1598 and UL8750) or NOM Certified. IC rated.
Wet location listed. IP66 with overlap door from below fixture only. Suitable for Bio Levels 1 & 2. Certified for NSF
Splash Zone 2. Base configurations for use in ambient temperatures ranging from -20°C (-4°F)to 40°C (104°F) with exception of the following lumen packages (1x4 - 10000LM; 2x2 - 10000LM and 12000LM; 2x4 - 18000LM and 24000LM) and emergency or control options which are 25°C (77°F) max.
BUY AMERICAN ACT -- Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.
Please refer to www.acuitybrands.com/buy-american for additional information.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY -- 5-year limited warranty.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION -- Housing is made from 20-gauge cold rolled steel. Door frame is .060 painted aluminum and lens is diffused acrylic. Gasket is closed cell silicone.
Finish: All CRS (cold rolled steel) and aluminum parts are finished with electrostatically deposited, thermally set, polyester powder paint after fabrication. Door frame and enclosure finish is NSF-listed.
OPTICS -- Long-life LEDs, coupled with high-efficiency drivers, provide extended service life.
Lumen maintenance of L80>60,000 hours, L70>100,000 hours.
ELECTRICAL -- Thermally protected, resetting, Class TL, UL listed, CSA certified driver is standard.
LED driver delivers dimming from a 0-10V control signal. Dims to 1% standard.
Luminaire Surge Protection Level: Designed to withstand up to 6kV/3kA per ANSI C82.77-5-2015.
INSTALLATION -- Lay-in grid or in-ceiling sheet rock installation using swing-arms with range from 1" to 2" grid height. See drawings for other critical dimensions. Additional sealing method required for sheet rock mounted overlap door. Refer to installation instructions for more information. Swing-arms are not intended to secure fixture without additional support. Line voltage supply wiring entrance opening is 7/8".
LISTINGS -- CSA certified to meet U.S. and Canadian standards (UL1598 and UL8750) or NOM Certified. IC rated.
Wet location listed. IP66 with overlap door from below fixture only. Suitable for Bio Levels 1 & 2. Certified for NSF
Splash Zone 2. Base configurations for use in ambient temperatures ranging from -20°C (-4°F)to 40°C (104°F) with exception of the following lumen packages (1x4 - 10000LM; 2x2 - 10000LM and 12000LM; 2x4 - 18000LM and 24000LM) and emergency or control options which are 25°C (77°F) max.
BUY AMERICAN ACT -- Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.
Please refer to www.acuitybrands.com/buy-american for additional information.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY -- 5-year limited warranty.
Download PDF specification Share your knowledge of this product. Be the first to write a review »
