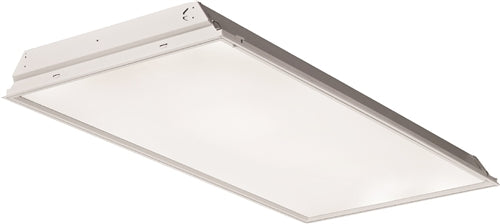

Lithonia 2TL4 48L FW A19 EZ1 E10WLCP LP8404800 Lumens, Flush Aluminum White Door, #19 Pattern Acrylic Lens, eldoLED Dims to 1%, EM Self-Diagnostic Battery Pack, 4000K Color Temperature
Lithonia 2TL4 48L FW A19 EZ1 E10WLCP LP8404800 Lumens, Flush Aluminum White Door, #19 Pattern Acrylic Lens, eldoLED Dims to 1%, EM Self-Diagnostic Battery Pack, 4000K Color Temperature
Regular price
Price:
$844.89
Regular price
Price:
Sale price
$844.89
Unit price
per
MODEL: Lithonia-2TL4-110277
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
INTENDED USE --The T Series LED combines digital lighting and control technologies with a high performance optical system to deliver general ambient lighting for many applications such as schools, offices and hospitals.
High-efficacy light engine delivers long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable. Certain airborne contaminants can diminish integrity of acrylic. Click here for Acrylic Environmental Compatibility table for suitable uses.
CONSTRUCTION -- Housing formed from cold-rolled steel. Housing is painted after fabrication for superior finish.
Smooth hemmed sides and smooth inward-formed end flanges, for easy handling.
Standard extruded aluminum door frame has superior structural integrity with premium appearance and mitered corners. Door frame is painted after fabrication, standard. Powder-painted rotary cam latches provide easy, secure door closure. Integral T-bar clips are standard. Acrylic shielding material is 100% UV stabilized.
OPTICS -- Standard pattern #19 lens, 0.156" thick with highly transmissive overlay, is standard for superior brightness control. Overlay is 0.040" thick. Other lenses are available.
ELECTRICAL -- Long-life LEDs, coupled with high-efficiency drivers, provide superior level and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI. Optional nLight embedded controls continuously monitor system performance, allow for constant lumen management/compensation function, facilitate simple "plug-and-play" network and controls upgrading via Cat-5 cable.
Driver disconnect is provided where required to comply with U.S. and Canadian codes.
INSTALLATION -- Drivers and internal components are accessible from floor. LED boards include plug-in connectors for easy replacement or servicing. Suitable for direct insulation contact. Suitable for damp location.
LISTINGS -- CSA certified to U.S. and Canadian standards. IC rated.
WARRANTY -- 5-year limited warranty.
High-efficacy light engine delivers long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable. Certain airborne contaminants can diminish integrity of acrylic. Click here for Acrylic Environmental Compatibility table for suitable uses.
CONSTRUCTION -- Housing formed from cold-rolled steel. Housing is painted after fabrication for superior finish.
Smooth hemmed sides and smooth inward-formed end flanges, for easy handling.
Standard extruded aluminum door frame has superior structural integrity with premium appearance and mitered corners. Door frame is painted after fabrication, standard. Powder-painted rotary cam latches provide easy, secure door closure. Integral T-bar clips are standard. Acrylic shielding material is 100% UV stabilized.
OPTICS -- Standard pattern #19 lens, 0.156" thick with highly transmissive overlay, is standard for superior brightness control. Overlay is 0.040" thick. Other lenses are available.
ELECTRICAL -- Long-life LEDs, coupled with high-efficiency drivers, provide superior level and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI. Optional nLight embedded controls continuously monitor system performance, allow for constant lumen management/compensation function, facilitate simple "plug-and-play" network and controls upgrading via Cat-5 cable.
Driver disconnect is provided where required to comply with U.S. and Canadian codes.
INSTALLATION -- Drivers and internal components are accessible from floor. LED boards include plug-in connectors for easy replacement or servicing. Suitable for direct insulation contact. Suitable for damp location.
LISTINGS -- CSA certified to U.S. and Canadian standards. IC rated.
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
