Lithonia 2VTL2 20L ADPT EZ1 E10W LP940 2'x2' LED Recessed Troffer, 2000 Lumens, Acrylic Linear Prismatic with Diffuser Trim Rings, 120-277V, eldoLED Dims to 1%, 0-10V, 10W Emergency Battery Pack, 90 CRI, 4000K
Lithonia 2VTL2 20L ADPT EZ1 E10W LP940 2'x2' LED Recessed Troffer, 2000 Lumens, Acrylic Linear Prismatic with Diffuser Trim Rings, 120-277V, eldoLED Dims to 1%, 0-10V, 10W Emergency Battery Pack, 90 CRI, 4000K
Regular price
Price:
$715.49
Regular price
Price:
Sale price
$715.49
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
The VT Series Volumetric LED Troffer (VTL/VTS) combines the aesthetics and high performance with intelligent LED engines for applications such as offices, schools, retail locations and hospitals. High-efficacy light engines deliver long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable. Multiple lumen packages and driver options provide solutions for all your lighting applications.
INTENDED USE
The VT Series Volumetric LED Troffer (VTL/VTS) combines the aesthetics and high performance with intelligent LED engines for applications such as offices, schools, retail locations and hospitals. High-efficacy light engines deliver long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable. Multiple lumen packages and driver options provide solutions for all your lighting applications.
Featured nLight control system provides design flexibility and ease of installation and optimum energy savings.
CONSTRUCTION

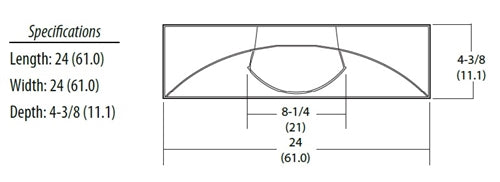

Rugged, one-piece cold-rolled steel coated polyester, painted after fabrication with embossed facets (VTL) or smooth (VTS) reflector surface. Impact-modified, single clear acrylic diffuser provides excellent shielding and wide distribution. End plates include integral T-bar clips. Fixture may be mounted and wired in continuous rows. Total fixture height is only 4-3/8". Driver is accessible from below the fixture, behind the diffuser and channel cover.
OPTICS
Volumetric illumination is achieved by creating an optimal mix of light to walls, partitions, vertical and horizontal work surfaces -- rendering the interior space, objects and occupants in a more balanced, complementary luminous environment. Deep drawn reflector cavity softens and distributes light into the space while minimizing luminous contrast between the fixture and ceiling. Sloped end plates provide a smooth, luminous transition between fixture and ceiling while enhancing the perception of fixture depth.
High-performance diffuser provides LED concealment, even illumination across the diffuser and improved lumen-per-watt performance.
Now available with two different aesthetics including the standard Acrylic Linear Prismatic Diffuser (ADP) and the
Acrylic smooth (ADSM) diffuser. Both options are available with trim rings (ADSMT/ADPT).
ELECTRICAL
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000).
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free, lowcurrent inrush, 89% efficiency and low EMI.
Standalone embedded controls: Luminaires with standalone embedded controls by SensorSwitch are designed, manufactured, tested, and shipped with the sensor or control device factory-installed. This simplifies design layouts and reduces total installed cost by eliminating field installation of control devices.
Networked embedded controls: Networked embedded controls by nLight address the requirements of
Luminaire Level Lighting Controls (LLLC). Luminaires with networked embedded controls by nLight are designed, manufactured, tested, and shipped with occupancy, daylight sensors or control devices factory-installed. This simplifies design layouts and reduces total installed cost by eliminates field installation of control devices, while addressing code requirements.
INSTALLATION
Unique grid interfacing arrangement provides mounting into standard 1" and 9/16" tee bar or screw slot grids. 9/16" allows fixture trim to hang level with architectural ceiling tiles. Drywall ceiling adaptors available. Suitable for damp location.
LISTINGS
CSA Certified to meet U.S. and Canadian standards. IC rated. DesignLights Consortium (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT
BAA -- Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
CONSTRUCTION
Rugged, one-piece cold-rolled steel coated polyester, painted after fabrication with embossed facets (VTL) or smooth (VTS) reflector surface. Impact-modified, single clear acrylic diffuser provides excellent shielding and wide distribution. End plates include integral T-bar clips. Fixture may be mounted and wired in continuous rows. Total fixture height is only 4-3/8". Driver is accessible from below the fixture, behind the diffuser and channel cover.
OPTICS
Volumetric illumination is achieved by creating an optimal mix of light to walls, partitions, vertical and horizontal work surfaces -- rendering the interior space, objects and occupants in a more balanced, complementary luminous environment. Deep drawn reflector cavity softens and distributes light into the space while minimizing luminous contrast between the fixture and ceiling. Sloped end plates provide a smooth, luminous transition between fixture and ceiling while enhancing the perception of fixture depth.
High-performance diffuser provides LED concealment, even illumination across the diffuser and improved lumen-per-watt performance.
Now available with two different aesthetics including the standard Acrylic Linear Prismatic Diffuser (ADP) and the
Acrylic smooth (ADSM) diffuser. Both options are available with trim rings (ADSMT/ADPT).
ELECTRICAL
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000).
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free, lowcurrent inrush, 89% efficiency and low EMI.
Standalone embedded controls: Luminaires with standalone embedded controls by SensorSwitch are designed, manufactured, tested, and shipped with the sensor or control device factory-installed. This simplifies design layouts and reduces total installed cost by eliminating field installation of control devices.
Networked embedded controls: Networked embedded controls by nLight address the requirements of
Luminaire Level Lighting Controls (LLLC). Luminaires with networked embedded controls by nLight are designed, manufactured, tested, and shipped with occupancy, daylight sensors or control devices factory-installed. This simplifies design layouts and reduces total installed cost by eliminates field installation of control devices, while addressing code requirements.
INSTALLATION
Unique grid interfacing arrangement provides mounting into standard 1" and 9/16" tee bar or screw slot grids. 9/16" allows fixture trim to hang level with architectural ceiling tiles. Drywall ceiling adaptors available. Suitable for damp location.
LISTINGS
CSA Certified to meet U.S. and Canadian standards. IC rated. DesignLights Consortium (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT
BAA -- Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
