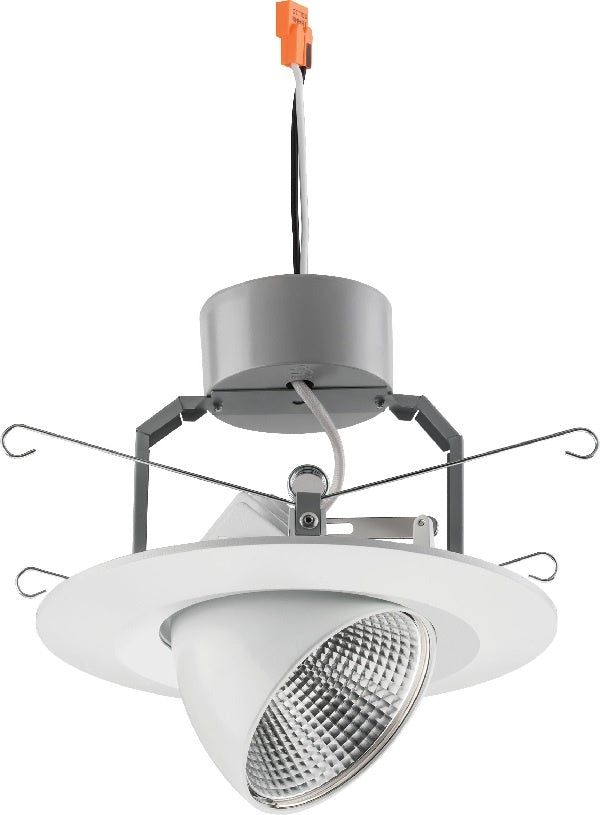

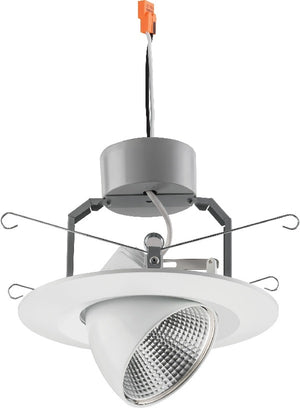

Lithonia 6iGMB LED 30K 90CRI 6 inch LED iGimbal Downlight, 12 Watts, 3000K, 750 Lumens, Matte Black, Less Medium Base Socket Adapter
Lithonia 6iGMB LED 30K 90CRI 6 inch LED iGimbal Downlight, 12 Watts, 3000K, 750 Lumens, Matte Black, Less Medium Base Socket Adapter
Regular price
Price:
$82.37
Regular price
Price:
Sale price
$82.37
Unit price
per
MODEL: Lithonia-6iG-106481
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
View full details
description
INTENDED USE -- The adjustable LED iGimbal downlighting module is 80% more efficient than incandescent luminaries, performing for 35,000 hours or more with exceptional energy efficiency and near zero maintenance. The LED iGimbal is intended for sloped ceiling applications, grazing textured surfaces, wall washing, and highlighting artwork or other architectural features. Retrofits into most existing recessed downlighting installations or new construction and remodel applications.
CONSTRUCTION -- Spun steel gimbal reflectors with 360 degree of rotation and at least 50 degree of adjustable tilt in both directions. Driver affixed to a static yoke to allow maximization of LED light engine rotation and pivot movements.
OPTICS -- Diffused lens at end of mixing chamber to provide even light distribution for general illumination, equivalent to 65W incandescent flood lamp. Wide flood beam angle at >90 degree. Utilizes 2700K, 3000K and 4000K color temperature LEDs. CRI 90+. The LED module maintains at least 70% light output for 35,000 hours.
ELECTRICAL -- Primary power disconnect provided for simple connection to a dedicated LED connector in the housing. Dimming down to 15%.
INSTALLATION -- Suitable for installation in standard height rough-in sections. Medium base socket adapter whip sold separately. Trim retention is achieved by utilizing two side-mounted torsion springs to ensure a consistently tight fit with the ceiling and easy installation.
LISTINGS -- ETL certified to US and Canadian safety standards. FCC Certified. ENERGY STAR certified; Certified to the high efficacy requirements of California T24. Damp location listed.
WARRANTY -- 5-year limited warranty.
CONSTRUCTION -- Spun steel gimbal reflectors with 360 degree of rotation and at least 50 degree of adjustable tilt in both directions. Driver affixed to a static yoke to allow maximization of LED light engine rotation and pivot movements.
OPTICS -- Diffused lens at end of mixing chamber to provide even light distribution for general illumination, equivalent to 65W incandescent flood lamp. Wide flood beam angle at >90 degree. Utilizes 2700K, 3000K and 4000K color temperature LEDs. CRI 90+. The LED module maintains at least 70% light output for 35,000 hours.
ELECTRICAL -- Primary power disconnect provided for simple connection to a dedicated LED connector in the housing. Dimming down to 15%.
INSTALLATION -- Suitable for installation in standard height rough-in sections. Medium base socket adapter whip sold separately. Trim retention is achieved by utilizing two side-mounted torsion springs to ensure a consistently tight fit with the ceiling and easy installation.
LISTINGS -- ETL certified to US and Canadian safety standards. FCC Certified. ENERGY STAR certified; Certified to the high efficacy requirements of California T24. Damp location listed.
WARRANTY -- 5-year limited warranty.
