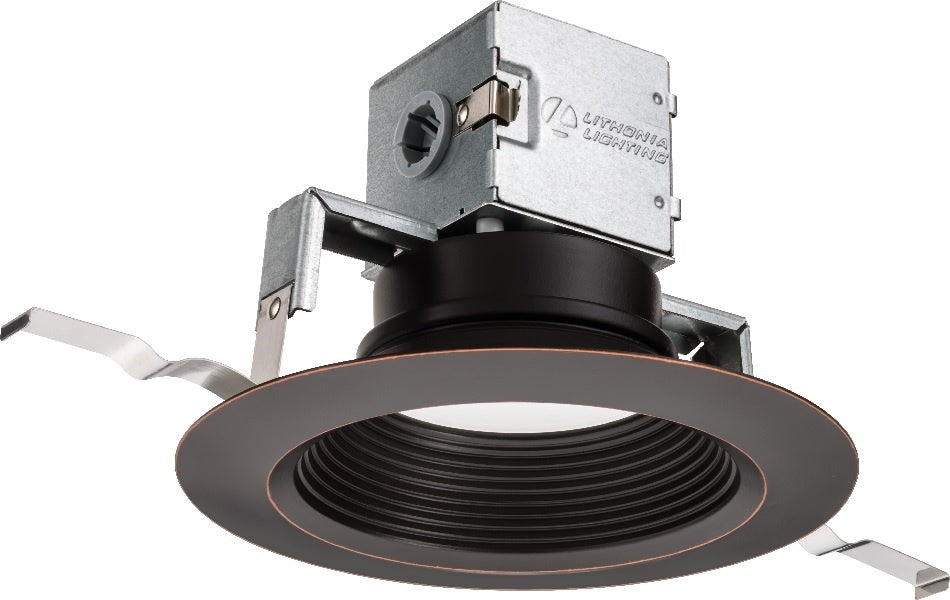

Lithonia 6JBK RD 40K 90CRI ORB Round Direct-Wire Canless LED Recessed Downlight, 4000K Color Temperature, 11W, 870 Lumens, 90 CRI, Oil Rubbed Bronze
Lithonia 6JBK RD 40K 90CRI ORB Round Direct-Wire Canless LED Recessed Downlight, 4000K Color Temperature, 11W, 870 Lumens, 90 CRI, Oil Rubbed Bronze
Regular price
Price:
$39.29
Regular price
Price:
Sale price
$39.29
Unit price
per
MODEL: Lithonia-6JBK-RD-106607
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- The OneUp recessed direct-wire LED downlight includes integrated junction box, trim, pre-installed non-metallic bushings and 3-port push wire quick connectors in one package. The OneUp is the most economical means to create a well lit environment with exceptional energy efficiency and near zero maintenance.
CONSTRUCTION -- Spun steel, round baffle trim. Integrated galvanized steel junction box with captive door for easy access. Suitable for daisy chaining (pulling wires). Available in 3000K color temperature LEDs.
OPTICS -- Round baffle recesses optical system into the ceiling to prevent glare and provide a traditional look. Diffused lens provides even light distribution for general illumination, equivalent to 65W incandescent flood lamp. Wide flood beam angle at >90 degree. CRI >90. Maintains at least 70% light output for 50,000 hours.
INSTALLATION -- Tool-less installation. Secure trim retention with two side-mounted spring clips for easy installation in plaster, sheet rock, or plywood ceilings. The integrated junction box - with pre-installed non-metallic bushing - allows non-metallic cable to be fed through without the hassle of knockouts. The captive junction box door provides easy access to pre-installed 3-port push wire quick connectors for straight-forward wiring. Rated for Type IC installations. Maximum of 4 No. 12AWG through branch circuit conductor suitable for 90 degree C permitted in box. Ground wire provided.
ELECTRICAL SYSTEM -- LED module with high-efficiency on board driver. Dimming down to 10%. For compatible dimmers, refer to: Compatible dimmers chart.
Actual wattage may differ by +/-5% when operating at 120V +/-10%.
LISTINGS -- ETL certified to US and Canadian safety standards. Can be used to comply with California Title 24 Part6 High Efficacy LED Light Source Requirements.
ENERGY STAR certified. Damp location listed.
WARRANTY -- 5-year limited warranty.
INTENDED USE -- The OneUp recessed direct-wire LED downlight includes integrated junction box, trim, pre-installed non-metallic bushings and 3-port push wire quick connectors in one package. The OneUp is the most economical means to create a well lit environment with exceptional energy efficiency and near zero maintenance.
CONSTRUCTION -- Spun steel, round baffle trim. Integrated galvanized steel junction box with captive door for easy access. Suitable for daisy chaining (pulling wires). Available in 3000K color temperature LEDs.
OPTICS -- Round baffle recesses optical system into the ceiling to prevent glare and provide a traditional look. Diffused lens provides even light distribution for general illumination, equivalent to 65W incandescent flood lamp. Wide flood beam angle at >90 degree. CRI >90. Maintains at least 70% light output for 50,000 hours.
INSTALLATION -- Tool-less installation. Secure trim retention with two side-mounted spring clips for easy installation in plaster, sheet rock, or plywood ceilings. The integrated junction box - with pre-installed non-metallic bushing - allows non-metallic cable to be fed through without the hassle of knockouts. The captive junction box door provides easy access to pre-installed 3-port push wire quick connectors for straight-forward wiring. Rated for Type IC installations. Maximum of 4 No. 12AWG through branch circuit conductor suitable for 90 degree C permitted in box. Ground wire provided.
ELECTRICAL SYSTEM -- LED module with high-efficiency on board driver. Dimming down to 10%. For compatible dimmers, refer to: Compatible dimmers chart.
Actual wattage may differ by +/-5% when operating at 120V +/-10%.
LISTINGS -- ETL certified to US and Canadian safety standards. Can be used to comply with California Title 24 Part6 High Efficacy LED Light Source Requirements.
ENERGY STAR certified. Damp location listed.
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
