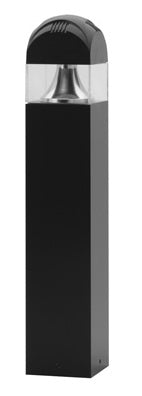

Lithonia ASBZ I R5 347 DNAT L/LP Incandescent Lamp Aeris Architectural Bollard Area Light, Crown Series, Type V Distribution, 347V, Textured Natural Aluminum, Lamp Not Included

For walkways, plazas or pedestrian areas.

Housing: Bottom housing is 0.188" extruded aluminum. Decorative Aeris™ top cover is sand-cast with 0.188"minimum wall thickness. 42" overall height standard. Flush-fitting lens is 1/4", clear, 100% virgin acrylic. All exposed hardware is tamper-resistant steel protected by a 1,000 hour corrosion-resistant coating. Four 1/2" x 11" anchor bolts with double nuts/washers and 4-1/2" diameter bolt circle template provided for mounting (shipped separately).

Dark bronze textured (DDBT) corrosion-resistant polyester powder finish standard; other architectural colors available.

Reflector system incorporates an anodized, spun aluminum flared cone and an anodized, hydroformed, fluted upper reflector providing a Type V (symmetric) cutoff distribution. Optional cylindrical lower reflector available.

Ballasts are copper wound and 100% factory tested. Electrical components are unitized on removable power module and accessible through bottom of bollard. Positive-locking, quick-disconnect on secondary circuit. Medium-base porcelain socket, 4KV pulse rated.

UL Listed (standard). CSA Certified (see Options). UL Listed for wet locations.
