Home > Lithonia Lighting > Lithonia CLX L48 9000LM SEF WDL MVOLT GZ10 35K 80CRI E10W SPD WH48" Linear LED Striplight, 9000 Lumens, Standard Efficiency, Less Louver, Wide Diffuse Lens, 120-277V, Dims to 10%, 3500K, 80 CRI, Battery Pack, Surge Protection, White
Lithonia CLX L48 9000LM SEF WDL MVOLT GZ10 35K 80CRI E10W SPD WH48" Linear LED Striplight, 9000 Lumens, Standard Efficiency, Less Louver, Wide Diffuse Lens, 120-277V, Dims to 10%, 3500K, 80 CRI, Battery Pack, Surge Protection, White
Lithonia CLX L48 9000LM SEF WDL MVOLT GZ10 35K 80CRI E10W SPD WH48" Linear LED Striplight, 9000 Lumens, Standard Efficiency, Less Louver, Wide Diffuse Lens, 120-277V, Dims to 10%, 3500K, 80 CRI, Battery Pack, Surge Protection, White
Regular price
Price:
$505.77
Regular price
Price:
Sale price
$505.77
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE -- The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.

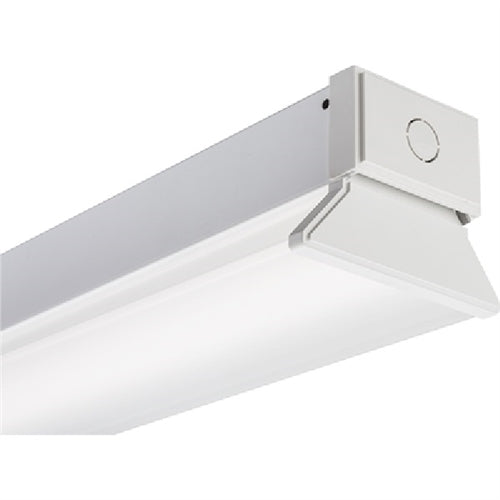

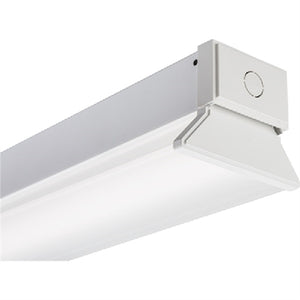

CONSTRUCTION -- Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
INTENDED USE -- The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION -- Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS -- Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL -- Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 9.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25?C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K.
Lumen output up to 2,500 lumens per foot.
INSTALLATION -- Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBKT), pendant or stem mounted with appropriate mounting options.
WARNING -- Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS -- CSA certified to US and Canadian safety standards. For use in damp locations between -4?F (-20?C) and 104?F (40?C). Optional High Ambient (HA) ranging to 122?F(50?C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT -- BAA - Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA - Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY -- 5-year limited warranty.
OPTICS -- Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL -- Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 9.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25?C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K.
Lumen output up to 2,500 lumens per foot.
INSTALLATION -- Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBKT), pendant or stem mounted with appropriate mounting options.
WARNING -- Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS -- CSA certified to US and Canadian safety standards. For use in damp locations between -4?F (-20?C) and 104?F (40?C). Optional High Ambient (HA) ranging to 122?F(50?C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT -- BAA - Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA - Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY -- 5-year limited warranty.
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
