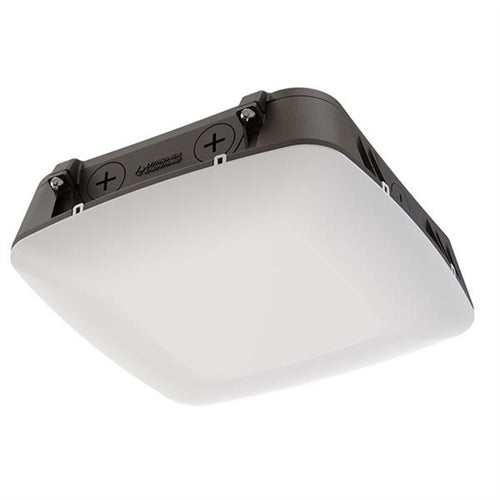

Lithonia CNY LED ALO SWW2 UVOLT PE PIR DDB M2 Adjustable Lumens and Color temperature LED Canopy, 120-277V, with Photocell Dark Bronze
Lithonia CNY LED ALO SWW2 UVOLT PE PIR DDB M2 Adjustable Lumens and Color temperature LED Canopy, 120-277V, with Photocell Dark Bronze
Regular price
Price:
$156.51
Regular price
Price:
Sale price
$156.51
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE:
INTENDED USE:
The CNY LED ALO canopy luminaire is ideal for surface mount application such as canopies over building entrances, walkways, loading docks, and covered parking areas. The products traditional style does not detract from current building aesthetics, creating a seamless upgrade. These products are energy-efficient replacements of existing surface mount products; up to 250W metal halide.
CNY LED ALO features adjustable lumen output include low, medium, and high. Switchable CCT includes 3000K (warm), 4000K (neutral), or 5000K (daylight), a selectable integral photocell that automatically turns the fixture on in the evening and off the next morning, and a selectable integral occupancy sensor that can turn on the fixture when motion is detected and be set to maintain 10% illumination or fully off when no motion is detected.
CONSTRUCTION:
The CNY LED ALO has a cast-aluminum housing with powder coat finish for lasting durability.
The IK08 impact rated frosted lens is designed for uniform light distribution while providing visually comfortable illumination. The lens is sealed with a one piece gasket creating an IP65 rated fixture. Rated for temps -25C to 25C.
ELECTRICAL:
Standard 6kV surge protection tested in accordance to ANSI/IEEE C62.41.2 Category C. CNY LED ALO luminaires use UVOLT (120-347V). Adjustable lumen output is achieved with 0-10V continuous dimming capable drivers, ensuring system power factor>90% and THD <20%. High-efficiency LEDs maintains over 70% of light output at 100,000 hours (L70>100,000 hours).

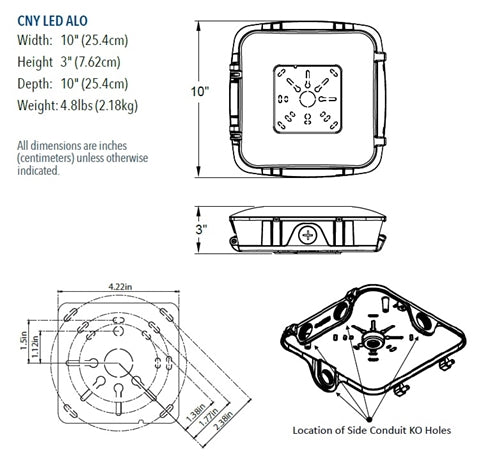

INSTALLATION:
The CNY LED ALO canopy luminaire features a quick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free. The quick-mount plate can be separated for surface mounting and reattached via a hinge for support while wiring. Four 3/4" NPT conduit entry points are built into the quick-mount plate to allow fast and confident alignment for surface-conduit wiring.
LISTINGS:
UL Listed to U.S. and Canadian safety standards for wet locations. Tested in accordance with IESNA LM-79 and LM-80 standards.
DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Can be used to comply with California Title 24, Part 6 High Efficacy LED light Source Requirements
WARRANTY:
5-year limited warranty.
CNY LED ALO features adjustable lumen output include low, medium, and high. Switchable CCT includes 3000K (warm), 4000K (neutral), or 5000K (daylight), a selectable integral photocell that automatically turns the fixture on in the evening and off the next morning, and a selectable integral occupancy sensor that can turn on the fixture when motion is detected and be set to maintain 10% illumination or fully off when no motion is detected.
CONSTRUCTION:
The CNY LED ALO has a cast-aluminum housing with powder coat finish for lasting durability.
The IK08 impact rated frosted lens is designed for uniform light distribution while providing visually comfortable illumination. The lens is sealed with a one piece gasket creating an IP65 rated fixture. Rated for temps -25C to 25C.
ELECTRICAL:
Standard 6kV surge protection tested in accordance to ANSI/IEEE C62.41.2 Category C. CNY LED ALO luminaires use UVOLT (120-347V). Adjustable lumen output is achieved with 0-10V continuous dimming capable drivers, ensuring system power factor>90% and THD <20%. High-efficiency LEDs maintains over 70% of light output at 100,000 hours (L70>100,000 hours).
INSTALLATION:
The CNY LED ALO canopy luminaire features a quick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free. The quick-mount plate can be separated for surface mounting and reattached via a hinge for support while wiring. Four 3/4" NPT conduit entry points are built into the quick-mount plate to allow fast and confident alignment for surface-conduit wiring.
LISTINGS:
UL Listed to U.S. and Canadian safety standards for wet locations. Tested in accordance with IESNA LM-79 and LM-80 standards.
DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Can be used to comply with California Title 24, Part 6 High Efficacy LED light Source Requirements
WARRANTY:
5-year limited warranty.
