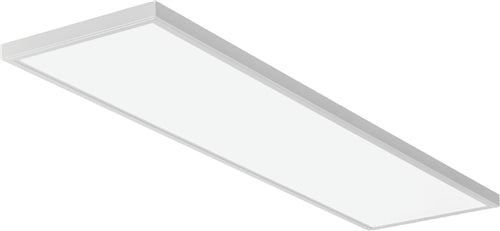

Lithonia CPANL 1X4 ALO1 SWW7 M4 1'x4' LED Flat Panel 2400/3300/4400 Lumens, 3500/4000/5000K, 120-277V
Lithonia CPANL 1X4 ALO1 SWW7 M4 1'x4' LED Flat Panel 2400/3300/4400 Lumens, 3500/4000/5000K, 120-277V
Regular price
Price:
$108.74
Regular price
Price:
Sale price
$108.74
Unit price
per
MODEL: Lithonia-CPANL-1069694
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- The CPANL Series LED switchable lumen flat panel features an internal driver and deep drawn backplate. This reliable and rigid flat panel is visually comfortable and can be recessed, direct ceiling mounted, suspended or surface box mounted. Suitable for many applications such as schools, offices, retail, convenience stores, hospitals, healthcare facilities and other commercial spaces.
CONSTRUCTION -- Built to last with an aluminum frame for strength and durability, the seamless frame prevents light leak in the corners. The satin white lens provides excellent shielding and fully luminous appearance. CPANL's low-profile design provides increased installation flexibility especially in restricted plenum spaces. The back plate includes integral T-bar clips for installation into 9/16" or 15/16" T-grid ceilings. Fixture may be direct ceiling mounted with the DCMK bracket on a hard-ceiling see accessories section for more information. Fixture may be mounted and wired in continuous rows.
ELECTRICAL -- Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. 70% LED lumen maintenance at 60,000 hours (L70/60,000). 0-10V dimming driver, dims to 10% and contains non-isolated dimming leads. Switch set to max high lumen output at the factory. For optimal 0-10V dimming performance it is recommended that the luminaire remains at factory default high lumen setting.
LISTINGS -- CSA certified to meet US and Canadian standards. Intended for indoor use only. Product is not to be stored in non-climate controlled spaces. Damp location listed. IC rated. IP5X Rated.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Rated for NSF/ANSI Standard 2 - Light Fixture for Splash Zone and Non Food Zone.
WARRANTY -- 5-year limited warranty.
INTENDED USE -- The CPANL Series LED switchable lumen flat panel features an internal driver and deep drawn backplate. This reliable and rigid flat panel is visually comfortable and can be recessed, direct ceiling mounted, suspended or surface box mounted. Suitable for many applications such as schools, offices, retail, convenience stores, hospitals, healthcare facilities and other commercial spaces.
CONSTRUCTION -- Built to last with an aluminum frame for strength and durability, the seamless frame prevents light leak in the corners. The satin white lens provides excellent shielding and fully luminous appearance. CPANL's low-profile design provides increased installation flexibility especially in restricted plenum spaces. The back plate includes integral T-bar clips for installation into 9/16" or 15/16" T-grid ceilings. Fixture may be direct ceiling mounted with the DCMK bracket on a hard-ceiling see accessories section for more information. Fixture may be mounted and wired in continuous rows.
ELECTRICAL -- Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. 70% LED lumen maintenance at 60,000 hours (L70/60,000). 0-10V dimming driver, dims to 10% and contains non-isolated dimming leads. Switch set to max high lumen output at the factory. For optimal 0-10V dimming performance it is recommended that the luminaire remains at factory default high lumen setting.
LISTINGS -- CSA certified to meet US and Canadian standards. Intended for indoor use only. Product is not to be stored in non-climate controlled spaces. Damp location listed. IC rated. IP5X Rated.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Rated for NSF/ANSI Standard 2 - Light Fixture for Splash Zone and Non Food Zone.
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
