Home > Lithonia Lighting > Lithonia CPRB ALO14 UVOLT SWW9 80CRI DWH Compact Pro LED Round High Bay, Switchable Lumens 21000LM/ 24000LM/ 27000LM, 120-347V, Switchable White 4000K/5000K, 80 CRI, Gloss White

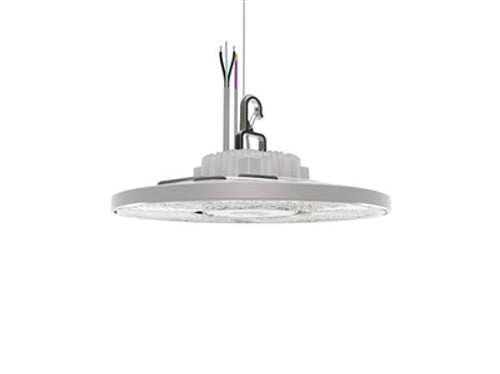

Lithonia CPRB ALO14 UVOLT SWW9 80CRI DWH Compact Pro LED Round High Bay, Switchable Lumens 21000LM/ 24000LM/ 27000LM, 120-347V, Switchable White 4000K/5000K, 80 CRI, Gloss White
Lithonia CPRB ALO14 UVOLT SWW9 80CRI DWH Compact Pro LED Round High Bay, Switchable Lumens 21000LM/ 24000LM/ 27000LM, 120-347V, Switchable White 4000K/5000K, 80 CRI, Gloss White
Regular price
Price:
$181.63
Regular price
Price:
Sale price
$181.63
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE -- Ideal one-for-one replacement of conventional lighting systems such as HID and fluorescent. For use in light Industrial applications such as, warehousing and other large indoor spaces with mounting heights ranging from 10' + permitted. Certain airborne contaminants can diminish integrity of acrylic and LED's. Click here for Acrylic Environmental Compatibility table for suitable uses.
INTENDED USE -- Ideal one-for-one replacement of conventional lighting systems such as HID and fluorescent. For use in light Industrial applications such as, warehousing and other large indoor spaces with mounting heights ranging from 10' + permitted. Certain airborne contaminants can diminish integrity of acrylic and LED's. Click here for Acrylic Environmental Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION -- Cast driver housing gives superior thermal performance. Tri-radial polycarbonate lens with IK10 impact resistance diffuses light source and reduces glare while protecting LEDs and providing medium distribution. Available in two sizes with optional switchable lumens (12000/15000/18000 or 21000/24000/27000) and color temperatures (4000K/5000K). Static lumen and color temperature versions also available. All models utilize one driver and three LED boards.
Factory and field installable sensor available.
FINISH -- Black and white finishes available on switchable units and static units available in white only.
ELECTRICAL -- L85 lumen maintenance at 60,000 hours. Thermally protected driver standard with 0-10V dimming allowing for 10% to 100% dimming capability. Fixture comes standard with 6' power cord and 6' low voltage dimming cord. Luminaire surge protection level: designed to withstand up to 6kV/3kA per ANSI C82.77-5-2015 Multi-volt driver, 120-277V standard for static versions. UVOLT driver, 120-347V standard with switchable versions.
INSTALLATION -- Compact Pro package includes patent pending permanently attached hook with safety latch safety hook and 7' galvanized safety cable. Optional 3/4" reducer available pendant, cast hook or loop mounting, or surface mount bracket available.
LISTINGS -- CSA listed. Damp location listed. IP54 rated. Designed for use in ambient temperatures ranging from -40°C to 55°C when suspended 18" from ceiling; with the exception of ALO14 which has a -37° C starting temperature.
DesignLights Consortium (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products
List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY -- 5-year limited warranty.
CONSTRUCTION -- Cast driver housing gives superior thermal performance. Tri-radial polycarbonate lens with IK10 impact resistance diffuses light source and reduces glare while protecting LEDs and providing medium distribution. Available in two sizes with optional switchable lumens (12000/15000/18000 or 21000/24000/27000) and color temperatures (4000K/5000K). Static lumen and color temperature versions also available. All models utilize one driver and three LED boards.
Factory and field installable sensor available.
FINISH -- Black and white finishes available on switchable units and static units available in white only.
ELECTRICAL -- L85 lumen maintenance at 60,000 hours. Thermally protected driver standard with 0-10V dimming allowing for 10% to 100% dimming capability. Fixture comes standard with 6' power cord and 6' low voltage dimming cord. Luminaire surge protection level: designed to withstand up to 6kV/3kA per ANSI C82.77-5-2015 Multi-volt driver, 120-277V standard for static versions. UVOLT driver, 120-347V standard with switchable versions.
INSTALLATION -- Compact Pro package includes patent pending permanently attached hook with safety latch safety hook and 7' galvanized safety cable. Optional 3/4" reducer available pendant, cast hook or loop mounting, or surface mount bracket available.
LISTINGS -- CSA listed. Damp location listed. IP54 rated. Designed for use in ambient temperatures ranging from -40°C to 55°C when suspended 18" from ceiling; with the exception of ALO14 which has a -37° C starting temperature.
DesignLights Consortium (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products
List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY -- 5-year limited warranty.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
