Lithonia CPX3P 2X2 ALO7HE SWW7 UVOLT Three Pane LED Panel, 2'x2', 3000-5000 Lumens, 3500K, 4000K and 5000K Color, 120-347V
Lithonia CPX3P 2X2 ALO7HE SWW7 UVOLT Three Pane LED Panel, 2'x2', 3000-5000 Lumens, 3500K, 4000K and 5000K Color, 120-347V
Regular price
Price:
$112.20
Regular price
Price:
Sale price
$112.20
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
The CPX3P offers a modern twist on the traditional LED flat panel, featuring a distinctive three-panel light design that enhances visual appeal while maintaining uniform illumination. The CPX3P delivers excellent optical uniformity, high efficacy, and a clean, contemporary appearance while leveraging the proven reliability of the CPX family. Selectable lumen output and color temperature options provide flexibility across a wide range of applications and help reduce SKU count, installation, and inventory management.
CONSTRUCTION
The CPX3P is constructed with a steel backplate and a reinforced frame designed to support a three-panel optical assembly. The integrated optical system promotes an edge-to-edge, fully luminous aesthetic while improving visual comfort.
ELECTRICAL
Long-life, high-efficiency LEDs deliver excellent lumen maintenance with L80 at 60,000 hours.
The CPX3P includes a high-quality driver offering 0–10V dimming down to 10%. The driver includes 2kV surge protection. Integrated, easily accessible switches allow for field selection of lumen output and color temperature during installation. Suitable for use in standard 120–347V applications.
INSTALLATION

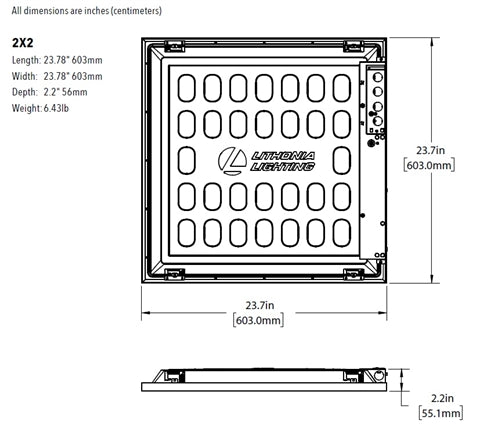

With a slim 2.2-inch profile and lightweight construction, the CPX3P is designed for recessed mounting in standard 15/16-inch and 9/16-inch T-grid ceiling systems. The luminaire may also be installed in hard ceilings using our drywall grid adapter, surface-mounted with our surface-mount kits, or suspended using our aircraft cable kits. Suitable for damp location and plenum use. Ideal for both new construction and renovation projects.
LISTINGS
CSA certified to meet US and Canadian standards. Damp location listed. IC rated. IP5X Rated.
DesignLights Consortium® (DLC) qualified product.
WARRANTY
5-year limited warranty.
INTENDED USE
The CPX3P offers a modern twist on the traditional LED flat panel, featuring a distinctive three-panel light design that enhances visual appeal while maintaining uniform illumination. The CPX3P delivers excellent optical uniformity, high efficacy, and a clean, contemporary appearance while leveraging the proven reliability of the CPX family. Selectable lumen output and color temperature options provide flexibility across a wide range of applications and help reduce SKU count, installation, and inventory management.
CONSTRUCTION
The CPX3P is constructed with a steel backplate and a reinforced frame designed to support a three-panel optical assembly. The integrated optical system promotes an edge-to-edge, fully luminous aesthetic while improving visual comfort.
ELECTRICAL
Long-life, high-efficiency LEDs deliver excellent lumen maintenance with L80 at 60,000 hours.
The CPX3P includes a high-quality driver offering 0–10V dimming down to 10%. The driver includes 2kV surge protection. Integrated, easily accessible switches allow for field selection of lumen output and color temperature during installation. Suitable for use in standard 120–347V applications.
INSTALLATION
With a slim 2.2-inch profile and lightweight construction, the CPX3P is designed for recessed mounting in standard 15/16-inch and 9/16-inch T-grid ceiling systems. The luminaire may also be installed in hard ceilings using our drywall grid adapter, surface-mounted with our surface-mount kits, or suspended using our aircraft cable kits. Suitable for damp location and plenum use. Ideal for both new construction and renovation projects.
LISTINGS
CSA certified to meet US and Canadian standards. Damp location listed. IC rated. IP5X Rated.
DesignLights Consortium® (DLC) qualified product.
WARRANTY
5-year limited warranty.
