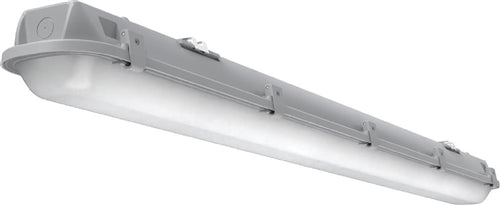

Lithonia CSVT L48 5000LM MVOLT 40K 80CRI IE7WCPHE 48" Linear LED Vapor Tight Fixture, 5000 Lumens, 4000K, 120-277V, 80 CRI with battery back up
Lithonia CSVT L48 5000LM MVOLT 40K 80CRI IE7WCPHE 48" Linear LED Vapor Tight Fixture, 5000 Lumens, 4000K, 120-277V, 80 CRI with battery back up
Regular price
Price:
$334.43
Regular price
Price:
Sale price
$334.43
Unit price
per
MODEL: Lithonia-CSVT-110773
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE -- Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct
INTENDED USE -- Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct
sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION
- Light Gray Polycarbonate housing
- Frosted Polycarbonate lens
- Poured in place polyurethane gasket
- Polycarbonate Latches, optional stainless steel latches available.
- Standard 1/2" wet location fitting
ELECTRICAL
- High Efficiency LEDs meet DLC Standard
- MVOLT (120-277V) & 347V
- 0-10V Dimming standard
Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
INSTALLATION
INSTALLATION
- Surface (wall, ceiling) using standard brackets includes bail for chain hanging
- Suspended (chain, cable) using standard brackets
LISTINGS
- CSA Certified to UL & C-UL Standards for wet location
- IP65, IP66 rated per IEC60529
- NSF Splash zone rated
- FCC Title 47, Part 15 Subpart B compliant
- 2.5kV/0.75kA Surge Rated per ANSI C82-77-5-2015
- CSA Ambient Listings on Page 3
- Lumen Maintenance Listed on Page 3
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY -- 5-year limited warranty.
WARRANTY -- 5-year limited warranty.
