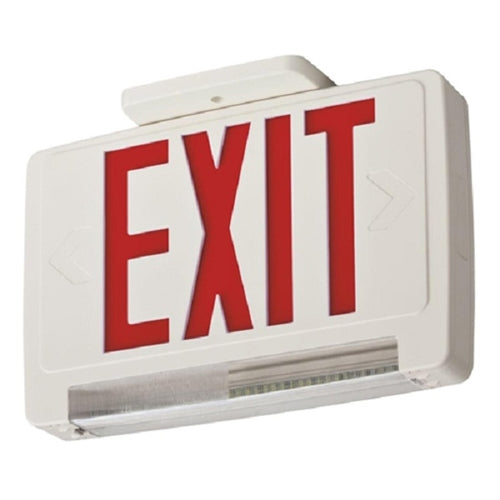

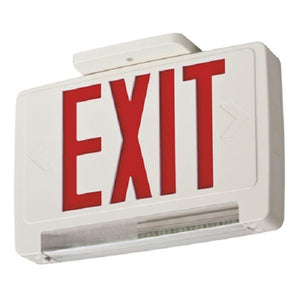

Lithonia ECBR LED M6 LED Exit Sign White Thermoplastic Single Face Red Letters Battery Backup
Lithonia ECBR LED M6 LED Exit Sign White Thermoplastic Single Face Red Letters Battery Backup
Regular price
Price:
$137.91
Regular price
Price:
Sale price
$137.91
Unit price
per
MODEL: Lithonia-ECB-105518
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
INTENDED USE
Unique design combines an energy-efficient LED exit sign with an integrated LED emergency light bar, into one low-profile unit.
CONSTRUCTION
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication.
Fully assembled single face with extra faceplate for easy field-conversion to double face. Integrated LED emergency light bar swivels to allow for full range of light adjustment.
Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards.
OPTICS
White LEDs are in series providing redundant light sources to ensure emergency lighting performance. The typical life of the exit LED lamp is 10 years. 1.5W per face.
ELECTRICAL
Dual-voltage input 120V or 277V AC; 9.6V output. Emergency combo provided with test switch, status indicator and rechargeable battery. Maintenance-free nickel cadmium high-output battery standard provides 90 minutes of emergency power and provides up to 3W of LED remote capacity.
INSTALLATION
Top, back or end mounting capability (canopy included).
LISTINGS
UL Listed. Meets UL 924, NFPA 101, NFPA 70-NEC and OSHA illumination standards. Indoor damp location
0°C to 50°C (32°F to 122 °F) listed standard.
WARRANTY 2-year limited warranty (Battery is prorated.).
Unique design combines an energy-efficient LED exit sign with an integrated LED emergency light bar, into one low-profile unit.
CONSTRUCTION
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication.
Fully assembled single face with extra faceplate for easy field-conversion to double face. Integrated LED emergency light bar swivels to allow for full range of light adjustment.
Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards.
OPTICS
White LEDs are in series providing redundant light sources to ensure emergency lighting performance. The typical life of the exit LED lamp is 10 years. 1.5W per face.
ELECTRICAL
Dual-voltage input 120V or 277V AC; 9.6V output. Emergency combo provided with test switch, status indicator and rechargeable battery. Maintenance-free nickel cadmium high-output battery standard provides 90 minutes of emergency power and provides up to 3W of LED remote capacity.
INSTALLATION
Top, back or end mounting capability (canopy included).
LISTINGS
UL Listed. Meets UL 924, NFPA 101, NFPA 70-NEC and OSHA illumination standards. Indoor damp location
0°C to 50°C (32°F to 122 °F) listed standard.
WARRANTY 2-year limited warranty (Battery is prorated.).
