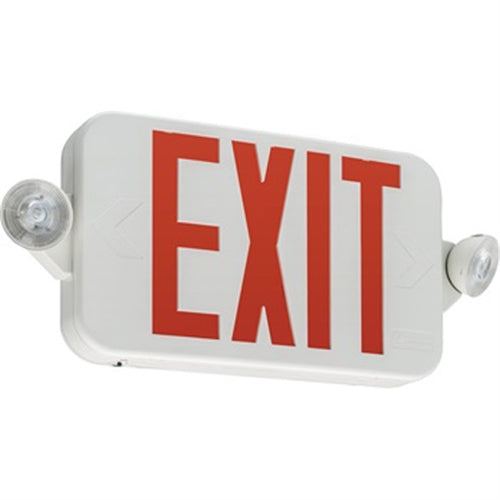

Lithonia ECC R M6 Single Face LED Combination Exit Sign - LED Lamp Heads
Lithonia ECC R M6 Single Face LED Combination Exit Sign - LED Lamp Heads
Regular price
Price:
$51.47
Regular price
Price:
Sale price
$51.47
Unit price
per
MODEL: Lithonia-ECC-105786
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
INTENDED USE -- Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting. Ideal for applications requiring low profile, exit and emergency combo for lower mounting heights.
CONSTRUCTION -- The housing is a standard ivory white, or optional black, thermoplastic with a compact and low-profile design with all-inclusive lamp, reflector and lens assembly. It is 5VA flame rated and impact-resistant.
OPTICS -- The typical life of the LED is 10 years. One, 0.75W white LED per lamp head.
ELECTRICAL -- Dual-voltage 120/277 standard. Optional 120/230,50/60Hz voltage available. Bi-color LED status indicator for battery condition. (Green-normal, Red-check battery).
Two and a half watts of remote capacity available with REM option.
BATTERY: 3.6V maintenance-free, rechargeable, nickel-cadmium.
INSTALLATION -- Top, side and back mount. Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes.
LISTINGS -- UL Listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA. Indoor damp location 50°F to 104°F (10°C to 40°C) listed.
WARRANTY -- 2-year limited warranty.
CONSTRUCTION -- The housing is a standard ivory white, or optional black, thermoplastic with a compact and low-profile design with all-inclusive lamp, reflector and lens assembly. It is 5VA flame rated and impact-resistant.
OPTICS -- The typical life of the LED is 10 years. One, 0.75W white LED per lamp head.
ELECTRICAL -- Dual-voltage 120/277 standard. Optional 120/230,50/60Hz voltage available. Bi-color LED status indicator for battery condition. (Green-normal, Red-check battery).
Two and a half watts of remote capacity available with REM option.
BATTERY: 3.6V maintenance-free, rechargeable, nickel-cadmium.
INSTALLATION -- Top, side and back mount. Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes.
LISTINGS -- UL Listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA. Indoor damp location 50°F to 104°F (10°C to 40°C) listed.
WARRANTY -- 2-year limited warranty.
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
