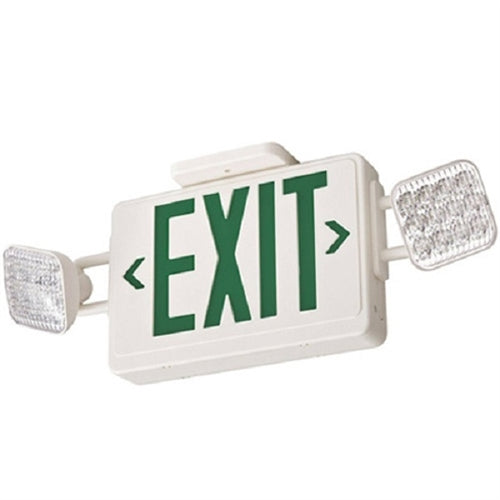

Lithonia ECG LED M6 LED Emergency Light Exit Sign Combo White Thermoplastic 2-Lamp Single Face Green Letters Battery Backup
Lithonia ECG LED M6 LED Emergency Light Exit Sign Combo White Thermoplastic 2-Lamp Single Face Green Letters Battery Backup
Regular price
Price:
$129.95
Regular price
Price:
Sale price
$129.95
Unit price
per
MODEL: Lithonia-ECG-105520
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
INTENDED USE
Combination emergency lighting unit and exit. Suitable for illuminating the path of egress and for marking the means of egress in accordance with Life Safety Code NFPA 101.
CONSTRUCTION
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication.
Fully assembled single face with extra faceplate for easy field-conversion to double face. Track and swivel arrangement permits full range of lamp adjustment.

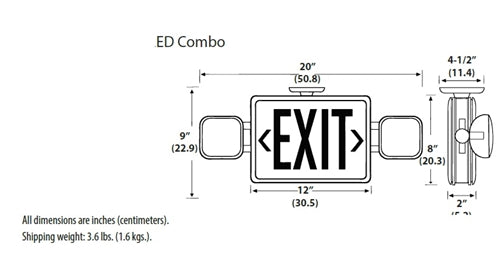

Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards.
OPTICS
The typical life of the LED lamp is 10 years. Two 1W LED lamps for emergency light.
ELECTRICAL
Dual-voltage input 120V or 277V AC; 9.6V output. Emergency combo provided with test switch, status indicator and rechargeable battery. Maintenance-free nickel-cadmium battery provides 90 minutes of emergency power. High output (HO) option provides up to 3W of LED remote capacity.
INSTALLATION
Top, back or end mounting capability (canopy included).
LISTINGS
UL Listed. Meets UL 924, NFPA 101, NFPA 70-NEC and OSHA illumination standards. Indoor damp location 32°F to 122°F (0°C to 50°C) listed standard.
WARRANTY 2-year limited warranty (Battery is prorated.).
Combination emergency lighting unit and exit. Suitable for illuminating the path of egress and for marking the means of egress in accordance with Life Safety Code NFPA 101.
CONSTRUCTION
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication.
Fully assembled single face with extra faceplate for easy field-conversion to double face. Track and swivel arrangement permits full range of lamp adjustment.
Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards.
OPTICS
The typical life of the LED lamp is 10 years. Two 1W LED lamps for emergency light.
ELECTRICAL
Dual-voltage input 120V or 277V AC; 9.6V output. Emergency combo provided with test switch, status indicator and rechargeable battery. Maintenance-free nickel-cadmium battery provides 90 minutes of emergency power. High output (HO) option provides up to 3W of LED remote capacity.
INSTALLATION
Top, back or end mounting capability (canopy included).
LISTINGS
UL Listed. Meets UL 924, NFPA 101, NFPA 70-NEC and OSHA illumination standards. Indoor damp location 32°F to 122°F (0°C to 50°C) listed standard.
WARRANTY 2-year limited warranty (Battery is prorated.).
