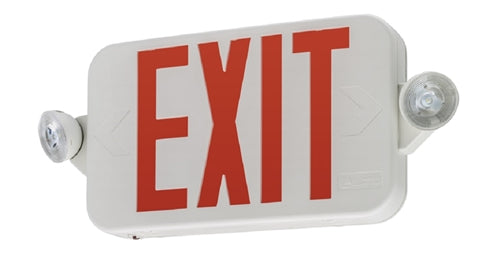

Lithonia ECRG RD M6 Exit and Emergency Light Combo Unit, Red and Green Letter, Round Lamp Heads
Lithonia ECRG RD M6 Exit and Emergency Light Combo Unit, Red and Green Letter, Round Lamp Heads
Regular price
Price:
$47.38
Regular price
Price:
Sale price
$47.38
Unit price
per
MODEL: Lithonia-ECRG-1069663
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE:
INTENDED USE:
Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting. Ideal for applications requiring low profile, emergency unit for lower mounting heights. The ECRG has an internal switch that ships standard as a red emergency light/exit combo and can be switched in the field to green. It is also packaged standard with an extra faceplate along with red and green inserts.
CONSTRUCTION:
The housing is a standard white thermoplastic with a compact and low-profile design with all-inclusive lamp, reflector and lens assembly. It is 5VA flame rated and impact-resistant.
OPTICS:
The typical life of the LED is 10 years.
ECRG is 0.75W white LED per lamp head
ECRG SQ is 1W LED per lamp head.
CRI: RD 80CRI
SQ 75CRI
CCT: RD 6200K
SQ 6200K
Lumen: RD 85 lumens
SQ 113 lumens
ELECTRICAL:
ECRG RD: multi-voltage 120-277V, 50/60Hz.
ECRG SQ: dual-voltage 120/277, 60Hz.
Bi-color LED status indicator for battery condition. (Green-normal, Red-check battery).
ECRG HO RD has 2W of remote capacity and ECRG HO SQ has 3W of remote capacity.
BATTERY: 3.6V maintenance-free, rechargeable, Nickel metal hydride.

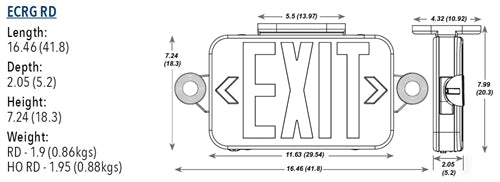

INSTALLATION:
ECRG RD: Top and Back Mount
ECRG SQ: Top, side and back mount.
Mounting pattern on canopy ( top and side mount) and back plate ( back mount) fits most standard size junction boxes.
LISTINGS:
UL Listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA.
Indoor damp location 50°F to 104°F (10°C to 40°C) listed.
WARRANTY:
2-year limited warranty.
CONSTRUCTION:
The housing is a standard white thermoplastic with a compact and low-profile design with all-inclusive lamp, reflector and lens assembly. It is 5VA flame rated and impact-resistant.
OPTICS:
The typical life of the LED is 10 years.
ECRG is 0.75W white LED per lamp head
ECRG SQ is 1W LED per lamp head.
CRI: RD 80CRI
SQ 75CRI
CCT: RD 6200K
SQ 6200K
Lumen: RD 85 lumens
SQ 113 lumens
ELECTRICAL:
ECRG RD: multi-voltage 120-277V, 50/60Hz.
ECRG SQ: dual-voltage 120/277, 60Hz.
Bi-color LED status indicator for battery condition. (Green-normal, Red-check battery).
ECRG HO RD has 2W of remote capacity and ECRG HO SQ has 3W of remote capacity.
BATTERY: 3.6V maintenance-free, rechargeable, Nickel metal hydride.
INSTALLATION:
ECRG RD: Top and Back Mount
ECRG SQ: Top, side and back mount.
Mounting pattern on canopy ( top and side mount) and back plate ( back mount) fits most standard size junction boxes.
LISTINGS:
UL Listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA.
Indoor damp location 50°F to 104°F (10°C to 40°C) listed.
WARRANTY:
2-year limited warranty.
