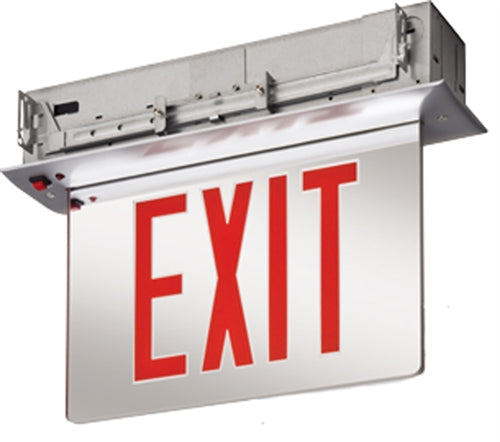

Lithonia EDGR 2 RMR Recessed LED Edge-Lit Exit, Brushed Aluminum Housing, Double Face, Red on Mirror Letter, AC Only

Intended Use

Ideal for applications requiring attractive edge-lit exit signage. City of Chicago approved.

Construction

Extruded brushed aluminum or white housing/trim.

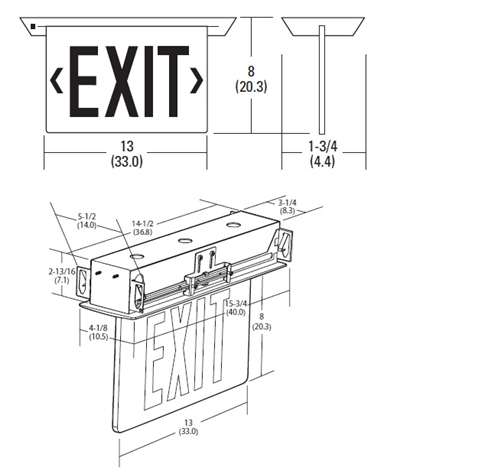

Letters measure 6" high with 100 ft. viewing distance rating based on UL924 standards. Full 3/4" stroke arrow. City of Chicago approved.

Dual voltage capability (120/277).

White LED technology provides uniform illumination to meet city of Chicago requirements.

The typical life of the exit LED lamp is 10 years.

Low energy consumption; fewer than 5 watts.

Electrical

Battery (for EL option only): Sealed maintenance-free nickel-cadmium battery delivers 90 minutes capacity to lamp. Charger maximizes battery life and automatically recharges after battery discharge.

Installation

EDGC - Universal (top, end or back) surface mounting. Canopy provided.

EDGRC - Recess top mounting. Rough-in box provided.

Listings

UL damp location listed 0 degree C to 50 degree C (32 degree F to 122 degree F) standard. Meets UL924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards. City of Chicago approved.

Five-year limited warranty.
