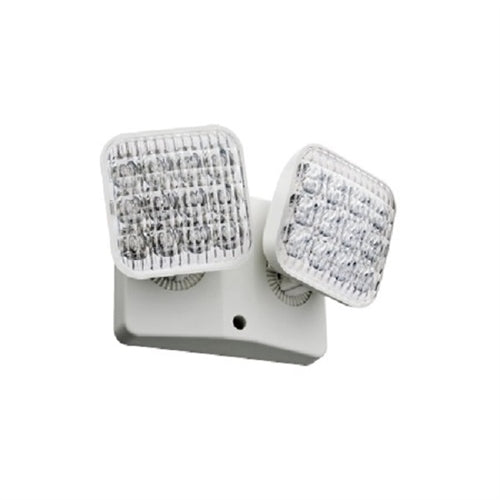

Lithonia ELA LED T WP M12 LED Remote Lamp Head Double Lamp Fully Adjustable White
Lithonia ELA LED T WP M12 LED Remote Lamp Head Double Lamp Fully Adjustable White
Regular price
Price:
$57.64
Regular price
Price:
Sale price
$57.64
Unit price
per
MODEL: Lithonia-ELA-105494
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
INTENDED USE
To be powered by Quantum LED series unit or combo with high-output option as part of an emergency lighting system providing light for the path of egress. Remote lamp head matches the appearance of the Quantum LED series family units. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic Environmental Compatibility table for suitable uses.
CONSTRUCTION
Single or twin heads available. Fully adjustable lamp heads to meet all aiming requirements. Strong, compact and corrosion-resistant with a UL94V-O flame rating. Constructed of UV-stabilized thermoplastic that resists discoloration by natural or artificial sunlight.
Outdoor remotes (QWP) are standard gray cast aluminum, sealed and gasketed. For use in damp and wet location areas.
Lamp housing snaps off for easy lamp replacement.
OPTICS
Lamps: 12 series-parallel white LEDs per head. The typical life of the LED lamp is 10 years.
ELA L0309 remote head 1.5W, 9.6V; ELA L0304 remote head 1.5W, 3.6V.
INSTALLATION
Mounting base for use with single- or twin-head applications. Mounts to a single-gang switch box.
LISTINGS
UL Listed. Damp location listed (ELA Q) 50°F to 104°F (100C to 400C). Wet location listed (ELA QWP) 14 degree F to 122 degree F (-10 degree C to 50 degree C).
WARRANTY
5-year limited warranty.
To be powered by Quantum LED series unit or combo with high-output option as part of an emergency lighting system providing light for the path of egress. Remote lamp head matches the appearance of the Quantum LED series family units. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic Environmental Compatibility table for suitable uses.
CONSTRUCTION
Single or twin heads available. Fully adjustable lamp heads to meet all aiming requirements. Strong, compact and corrosion-resistant with a UL94V-O flame rating. Constructed of UV-stabilized thermoplastic that resists discoloration by natural or artificial sunlight.
Outdoor remotes (QWP) are standard gray cast aluminum, sealed and gasketed. For use in damp and wet location areas.
Lamp housing snaps off for easy lamp replacement.
OPTICS
Lamps: 12 series-parallel white LEDs per head. The typical life of the LED lamp is 10 years.
ELA L0309 remote head 1.5W, 9.6V; ELA L0304 remote head 1.5W, 3.6V.
INSTALLATION
Mounting base for use with single- or twin-head applications. Mounts to a single-gang switch box.
LISTINGS
UL Listed. Damp location listed (ELA Q) 50°F to 104°F (100C to 400C). Wet location listed (ELA QWP) 14 degree F to 122 degree F (-10 degree C to 50 degree C).
WARRANTY
5-year limited warranty.
