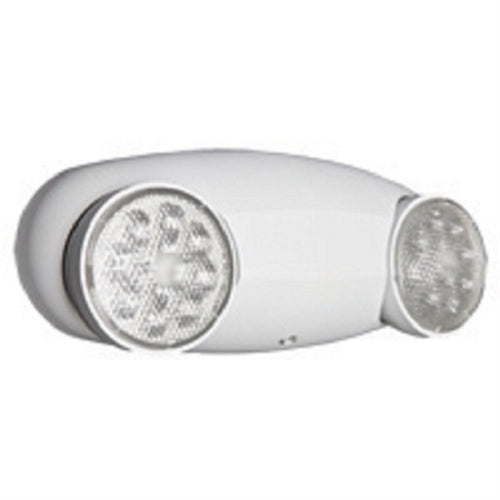

Lithonia-ELM2 LED T20C Two 1.5W/3.6V White LED Thermoplastic Emergency Light, White Housing, California Title 20 Compliance

A slim, LED emergency lighting unit for general purpose applications.

Intended Use

Provides a minimum of 90 minutes of illumination for the rated wattage upon loss of AC power. Ideal for applications requiring attractive unit equipment with quick installation.

Construction

White, compact, low-profile contemporary design.

Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof.

Features two LED lamp heads with 12 parallel white LEDs in each. The typical life of the LED lamp is 10 years.

Unique track-and-swivel arrangement permits full range of direction of lamp head adjustment.

Electrical

Battery: Sealed, maintenance-free Ni-cad battery that delivers 90 minute capacity to emergency lamps.

Dual-voltage input capacity(120/277).

Listings

UL damp location listed standard 50-104⁰F (10-40⁰C). Meets UL 924, NFPA 101 (current Life Saftey Code), NEC and OSHA illuminaion standards.

Five-year limited warranty.
