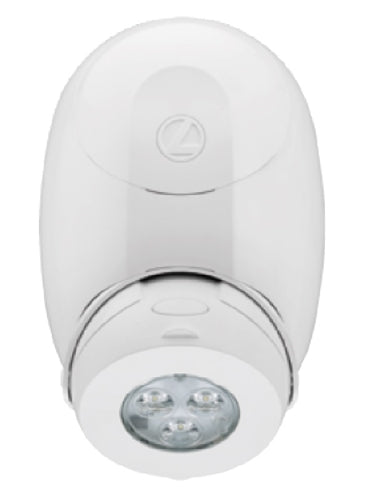

Lithonia ELMRE SP1100L SGL M12 Quantum LED Thermoplastic Emergency Light, 550 lumen, 5.3 watt, Spot Pattern, Single, Aimable
Lithonia ELMRE SP1100L SGL M12 Quantum LED Thermoplastic Emergency Light, 550 lumen, 5.3 watt, Spot Pattern, Single, Aimable
Regular price
Price:
$96.52
Regular price
Price:
Sale price
$96.52
Unit price
per
MODEL: Lithonia-ELMRE-106739
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- To be powered by Quantum series emergency units and any battery voltage system between 5VDC and 30VDC output and with adequate wattage capacity. Remote lamp head matches the appearance of the Quantum ELM2LF, ELM2L, ELM4L, ELM6L series units, as part of an emergency lighting system providing light for the path of egress. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION -- Compact, low-profile contemporary design, available in white (standard) or black. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. UV stable resin resists discoloration from natural and man-made light sources. Strong, compact and corrosion-resistant with a UL94V-O flame rating.
Single or twin heads available.
Fully adjustable lamp heads to meet all aiming requirements.
Universal J-box mounting pattern. Tool-less access for maintenance. US Patent No. D483,511.
OPTICS -- LED, available in 1.2W, 3.3W or 5.3W lamps @ 5VDC-30VDC (10-40 degree C) and @ 7VDC-30VDC (-30 - 40 degree C) input. The typical life of the LED is 10 years.
LEDs provide nominal 70 CRI at 5000 K.
INSTALLATION -- Wall or Ceiling mount standard. Flexible conduit entry provision on top of the unit.
US Patent No. D483,511.
LISTINGS -- UL damp location listed standard and wet location listed when used with the WPVS accessory, up to -22-104 degree F(-30 -40 degree C). Meets UL 924, NFPA 101 (current Life Safety Code). Meets NFPA 70 (NEC), C22.2 CSA. Meets all applicable FCC requirements. Meets NEC and OSHA illumination standards.
Meets Mexican standards.
WARRANTY -- 5-year limited warranty.
INTENDED USE -- To be powered by Quantum series emergency units and any battery voltage system between 5VDC and 30VDC output and with adequate wattage capacity. Remote lamp head matches the appearance of the Quantum ELM2LF, ELM2L, ELM4L, ELM6L series units, as part of an emergency lighting system providing light for the path of egress. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION -- Compact, low-profile contemporary design, available in white (standard) or black. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. UV stable resin resists discoloration from natural and man-made light sources. Strong, compact and corrosion-resistant with a UL94V-O flame rating.
Single or twin heads available.
Fully adjustable lamp heads to meet all aiming requirements.
Universal J-box mounting pattern. Tool-less access for maintenance. US Patent No. D483,511.
OPTICS -- LED, available in 1.2W, 3.3W or 5.3W lamps @ 5VDC-30VDC (10-40 degree C) and @ 7VDC-30VDC (-30 - 40 degree C) input. The typical life of the LED is 10 years.
LEDs provide nominal 70 CRI at 5000 K.
INSTALLATION -- Wall or Ceiling mount standard. Flexible conduit entry provision on top of the unit.
US Patent No. D483,511.
LISTINGS -- UL damp location listed standard and wet location listed when used with the WPVS accessory, up to -22-104 degree F(-30 -40 degree C). Meets UL 924, NFPA 101 (current Life Safety Code). Meets NFPA 70 (NEC), C22.2 CSA. Meets all applicable FCC requirements. Meets NEC and OSHA illumination standards.
Meets Mexican standards.
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
