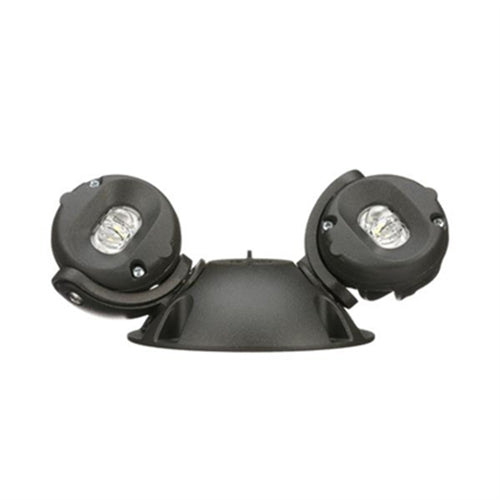

Lithonia ELMRW SP640L DDBTXD T Universal DC Voltage, 320 Lumens, Linear Pattern, 5VDC-20VDC Input, Twin Lamps, Dark Bronze Textured
Lithonia ELMRW SP640L DDBTXD T Universal DC Voltage, 320 Lumens, Linear Pattern, 5VDC-20VDC Input, Twin Lamps, Dark Bronze Textured
Regular price
Price:
$161.29
Regular price
Price:
Sale price
$161.29
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
To be powered by Quantum series emergency units, exit-unit combos and any battery voltage system between 5VDC and 20VDC output and with adequate wattage capacity. Remote lamp head matches the appearance of the Quantum ELM2L, ELM4L, ELM6L series units, as part of an emergency lighting system providing light for the path of egress. Compatible with Quantum® LQM exit and LHQM exit-unit combo, thermoplastic with red/green switching selection. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION
Die-cast lamp head housing, yoke, and single-gang junction box cover providing wet location protection and heat dissipation. Finishes are textured powder coat paint for dark bronze and glossy paint for white, black, and natural aluminum. UV stable resin resists discoloration from natural and man-made light sources. Strong, compact and corrosion-resistant with a UL94V-O flame rating.
Single or twin heads available.
Fully adjustable lamp heads to meet all aiming requirements.
OPTICS
LED, available in 1.2W (LP220L) or 3.3W (SP640L) lamps @ 5VDC-20VDC input. The typical life of the LED is 10 years. The typical life of the LED is 10 years.
LISTINGS
UL wet location listed up to -40 - 131°F (-40 - 55°C). Meets UL 924, NFPA 101 (current Life Safety Code). Meets NFPA 70 (NEC), C22.2 CSA. FCC Title 47, Part 15, Subpart B. Meets NEC and OSHA illumination standards. Meets Mexican standards. Meets City of Chicago Code ( SP640L only). Available for sale in California.
WARRANTY
5-year limited warranty.
NOTE: Actual performance may differ as a result of end-user environment and application.
INTENDED USE
To be powered by Quantum series emergency units, exit-unit combos and any battery voltage system between 5VDC and 20VDC output and with adequate wattage capacity. Remote lamp head matches the appearance of the Quantum ELM2L, ELM4L, ELM6L series units, as part of an emergency lighting system providing light for the path of egress. Compatible with Quantum® LQM exit and LHQM exit-unit combo, thermoplastic with red/green switching selection. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION
Die-cast lamp head housing, yoke, and single-gang junction box cover providing wet location protection and heat dissipation. Finishes are textured powder coat paint for dark bronze and glossy paint for white, black, and natural aluminum. UV stable resin resists discoloration from natural and man-made light sources. Strong, compact and corrosion-resistant with a UL94V-O flame rating.
Single or twin heads available.
Fully adjustable lamp heads to meet all aiming requirements.
OPTICS
LED, available in 1.2W (LP220L) or 3.3W (SP640L) lamps @ 5VDC-20VDC input. The typical life of the LED is 10 years. The typical life of the LED is 10 years.
LISTINGS
UL wet location listed up to -40 - 131°F (-40 - 55°C). Meets UL 924, NFPA 101 (current Life Safety Code). Meets NFPA 70 (NEC), C22.2 CSA. FCC Title 47, Part 15, Subpart B. Meets NEC and OSHA illumination standards. Meets Mexican standards. Meets City of Chicago Code ( SP640L only). Available for sale in California.
WARRANTY
5-year limited warranty.
NOTE: Actual performance may differ as a result of end-user environment and application.
