Home > Lithonia Lighting > Lithonia ERE W T SQ LED Emergency Remote Lamp, Ivory White Housing, Twin Lampheads, Square Lamp Head

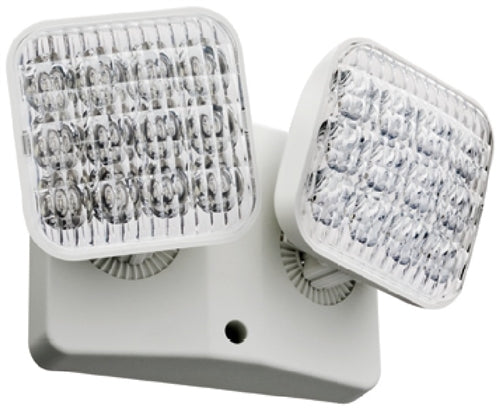

Lithonia ERE W T SQ LED Emergency Remote Lamp, Ivory White Housing, Twin Lampheads, Square Lamp Head
Lithonia ERE W T SQ LED Emergency Remote Lamp, Ivory White Housing, Twin Lampheads, Square Lamp Head
Regular price
Price:
$50.66
Regular price
Price:
Sale price
$50.66
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
Single and twin LED remote lamps for indoor and outdoor applications, for use as part of an emergency lighting system, providing light for path of egress.
CONSTRUCTION
Indoor remote heads are injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic, ivory white or black finish.
Weather-proof (WP) are engineering grade, high-impact resistant thermoplastic, sealed and gasketed, gray or black finish. For use in damp and wet location areas.
Compatible with EU2L REM, EU2C HO, ELM2L LTP, ECRG HO, ECRM HO, ECBRM and EXRM.
INTENDED USE
Single and twin LED remote lamps for indoor and outdoor applications, for use as part of an emergency lighting system, providing light for path of egress.
CONSTRUCTION
Indoor remote heads are injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic, ivory white or black finish.
Weather-proof (WP) are engineering grade, high-impact resistant thermoplastic, sealed and gasketed, gray or black finish. For use in damp and wet location areas.
Compatible with EU2L REM, EU2C HO, ELM2L LTP, ECRG HO, ECRM HO, ECBRM and EXRM.
Fully adjustable lamp heads.
Suitable for wall or ceiling mount. Mounts to a single-gang switch box.
OPTICS
The typical life of the LED is 10 years.
Round remotes (ERE RD) have one, 0.75W white LED per lamp head. To be powered from low-voltage power sources (3.6V only).
Weather-proof (ERE SGL SQ and ERE SGL WP SQ) have eight, 1W total, white LEDs per lamp head.
Weather-proof (ERE T SQ and ERE T WP SQ) have eight, 2W total, white LEDs per lamp head.
ERE SQ (single and twin) for use with 3.6V, 6V, 9.6V & 12V sensing power source.
INSTALLATION
Suitable for wall or ceiling mount. Mounts to a single-gang switch box.
LISTINGS
CULUS Listed with approved Lithonia Lighting products.
Meets UL924, NFPA 101 (current Life Safety Code), NEC, OSHA, Local and State Codes.
Indoor damp location listed (ERE) 50°F to 104°F (10°C to 40°C).
Wet location listed (ERE WP) -22°F to 122°F (-30°C to 50°C).
Available for sale in CA.
Suitable for wall or ceiling mount. Mounts to a single-gang switch box.
OPTICS
The typical life of the LED is 10 years.
Round remotes (ERE RD) have one, 0.75W white LED per lamp head. To be powered from low-voltage power sources (3.6V only).
Weather-proof (ERE SGL SQ and ERE SGL WP SQ) have eight, 1W total, white LEDs per lamp head.
Weather-proof (ERE T SQ and ERE T WP SQ) have eight, 2W total, white LEDs per lamp head.
ERE SQ (single and twin) for use with 3.6V, 6V, 9.6V & 12V sensing power source.
INSTALLATION
Suitable for wall or ceiling mount. Mounts to a single-gang switch box.
LISTINGS
CULUS Listed with approved Lithonia Lighting products.
Meets UL924, NFPA 101 (current Life Safety Code), NEC, OSHA, Local and State Codes.
Indoor damp location listed (ERE) 50°F to 104°F (10°C to 40°C).
Wet location listed (ERE WP) -22°F to 122°F (-30°C to 50°C).
Available for sale in CA.
WARRANTY
2-year limited warranty.
2-year limited warranty.
