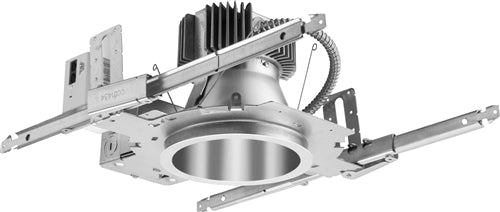

Lithonia EVO4WW 35/15 AR LSS MVOLT GZ10 4" Round LED Downlight 3500K, 1500 Lumens, Clear Reflector, Semi-Specular Finish, 120-277V, 0-10V Driver Dims to 10%

Lithonia EVO4WW 35/15 AR LSS MVOLT GZ10 4" Round LED Downlight 3500K, 1500 Lumens, Clear Reflector, Semi-Specular Finish, 120-277V, 0-10V Driver Dims to 10%

Price: $265.24
Price: $265.24

MODEL: Lithonia-EVO-105979

Usually Ships in 3-5 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

OPTICAL SYSTEM
  • Patented Bounding Ray optical design (U.S. Patent No. 5,800,050)
  • 45 degrees cutoff to source and source image
  • Top-down flash characteristic
  • olycarbonate lens integral to light engine
MECHANICAL SYSTEM
  • 16-gauge galvanized steel construction; maximum 1-1/2" ceiling thickness
  • Telescopic mounting bars maximum of 32", preinstalled, 4" vertical adjustment
  • Toolless adjustments post installation
  • Junction box capacity: 8 (4 in, 4 out ) 12AWG rated for 90 degree C
  • Light engine and driver accessible through aperture
ELECTRICAL SYSTEM
  • Fully serviceable and upgradeable lensed LED light engine
  • 70% lumen maintenance at 60,000 hours
  • Tested according to LM-79 and LM-80 standards
  • Overload and short circuit protected
  • 2.5 SDCM; 85 CRI typical, 90+ CRI optional
LISTINGS
Fixtures are CSA certified to meet US and Canadian standards; wet location, covered ceiling. ENERGY STAR® certified product.

WARRANTY
5-year limited warranty
