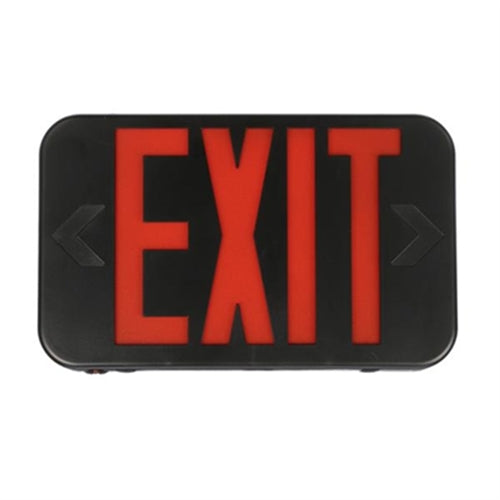

Lithonia EXR LED B EL M6 Emergency Exit LED Sign, Red Letters, Black Thermoplastic Housing, Nicad Battery Back-Up
Lithonia EXR LED B EL M6 Emergency Exit LED Sign, Red Letters, Black Thermoplastic Housing, Nicad Battery Back-Up
Regular price
Price:
$45.29
Regular price
Price:
Sale price
$45.29
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE
LED lighted exit signs for marking the means of egress in accordance with NFPA101 (current Life Safety Code).
CONSTRUCTION
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication.
INTENDED USE
LED lighted exit signs for marking the means of egress in accordance with NFPA101 (current Life Safety Code).
CONSTRUCTION
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication.

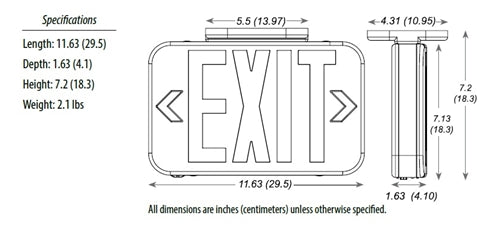

Fully assembled single face with extra faceplate for easy field-conversion to double face. Letters 6” high with 3/4” stroke, with 100 ft viewing distance rating, based on UL924 standards.
OPTICS
The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL
Dual-voltage input 120V or 277V AC, 60Hz.
Battery: (EL models) maintenance-free ni-cad battery provides 90 minutes of emergency power. The emergency model includes the test switch, status indicator and rechargeable battery. Allow 24 hours to completely charge for full operation.
SELF-DIAGNOSTICS (SD option)
The self-diagnostic function is factory preset without any field adjustment.
Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
Self-diagnostic testing for 30 seconds every 30 days, 30minute every 180 days, and 90 minutes every 365 days.
Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition. Continuously monitors AC functionality.
INSTALLATION
Universal (top-, end-, or back-) mounting (canopy included). Easily removed mounting knockouts. J-box pattern on back panel.
Ships standard with additional face plate.
LISTINGS
UL indoor damp location listed 32°-122°F (0°-50°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B, NFPA 70-NEC and OSHA illumination standards.
WARRANTY
2-year limited warranty. (Battery is prorated.)
OPTICS
The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL
Dual-voltage input 120V or 277V AC, 60Hz.
Battery: (EL models) maintenance-free ni-cad battery provides 90 minutes of emergency power. The emergency model includes the test switch, status indicator and rechargeable battery. Allow 24 hours to completely charge for full operation.
SELF-DIAGNOSTICS (SD option)
The self-diagnostic function is factory preset without any field adjustment.
Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
Self-diagnostic testing for 30 seconds every 30 days, 30minute every 180 days, and 90 minutes every 365 days.
Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition. Continuously monitors AC functionality.
INSTALLATION
Universal (top-, end-, or back-) mounting (canopy included). Easily removed mounting knockouts. J-box pattern on back panel.
Ships standard with additional face plate.
LISTINGS
UL indoor damp location listed 32°-122°F (0°-50°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B, NFPA 70-NEC and OSHA illumination standards.
WARRANTY
2-year limited warranty. (Battery is prorated.)
