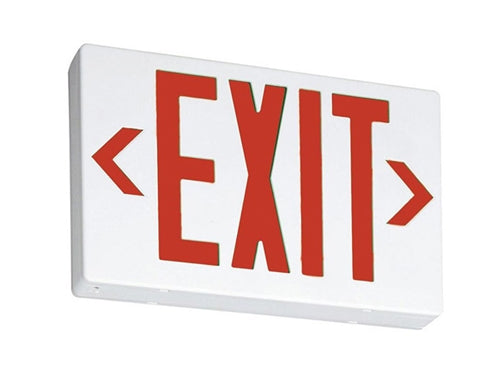

Lithonia EXR LED M6 LED Exit Sign White Thermoplastic Single Face Red Letters
Lithonia EXR LED M6 LED Exit Sign White Thermoplastic Single Face Red Letters
Regular price
Price:
$49.10
Regular price
Price:
Sale price
$49.10
Unit price
per
MODEL: Lithonia-EXR-105469
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
INTENDED USE
LED lighted exit signs for marking the means of egress in accordance with Life Safety Code NFPA 101.
CONSTRUCTION
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication. Fully assembled single face with extra faceplate for easy field-conversion to double face.

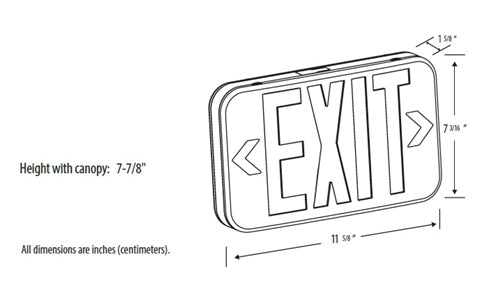

Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards.
OPTICS
The typical life of the LED lamp is 10 years.
ELECTRICAL
Dual-voltage input 120V or 277V AC. Emergency exits provided with test switch, status indicator and rechargeable battery.
Battery: (EL models) maintenance-free ni-cad battery provides 90 minutes of emergency power.
INSTALLATION
Top, back or end mounting capability (canopy included).
LISTINGS
UL Listed. Meets UL 924, NFPA 101, NFPA 70-NEC and OSHA illumination standards. Indoor damp location
50 degree to 104 degree F (10 degree C to 40 degree C) listed standard.
WARRANTY 2-year limited warranty (Battery is prorated.).
LED lighted exit signs for marking the means of egress in accordance with Life Safety Code NFPA 101.
CONSTRUCTION
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication. Fully assembled single face with extra faceplate for easy field-conversion to double face.
Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards.
OPTICS
The typical life of the LED lamp is 10 years.
ELECTRICAL
Dual-voltage input 120V or 277V AC. Emergency exits provided with test switch, status indicator and rechargeable battery.
Battery: (EL models) maintenance-free ni-cad battery provides 90 minutes of emergency power.
INSTALLATION
Top, back or end mounting capability (canopy included).
LISTINGS
UL Listed. Meets UL 924, NFPA 101, NFPA 70-NEC and OSHA illumination standards. Indoor damp location
50 degree to 104 degree F (10 degree C to 40 degree C) listed standard.
WARRANTY 2-year limited warranty (Battery is prorated.).
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
