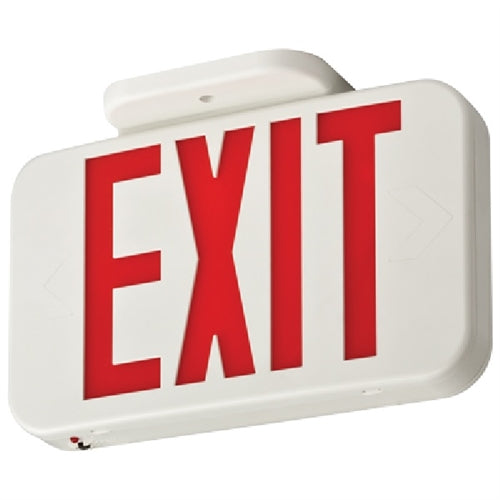

Lithonia EXRG M6 LED Exit Sign White Thermoplastic Single Face Red and Green Letters

PRODUCT DESCRIPTIONS
INTENDED USE: LED lighted exit signs for marking the means of egress in accordance with Life Safety Code NFPA 101. The EXRG has an internal switch that ships standard as a red exit and can be switched in the field to green. It is also packaged standard with an extra faceplate along with red and green inserts.

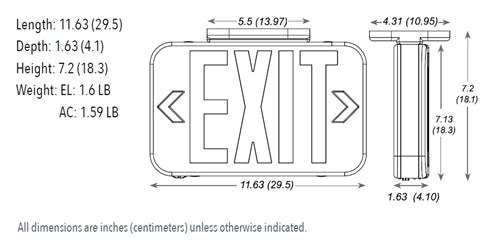

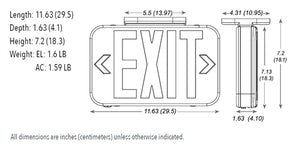

CONSTRUCTION: Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication. Fully assembled single face with extra faceplate for easy field-conversion to double face. Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards. OPTICS: The typical life of the LED lamp is 10 years.

ELECTRICAL: Dual-voltage input 120V or 277V AC. Non-emergency (AC only without battery) or Emergency exit with battery. The emergency model includes the test switch, status indicator and rechargeable battery. Battery: (EL models) maintenance-free Nickel metal hydride battery provides 90 minutes of emergency power.

INSTALLATION: Top, back or end mounting capability (canopy included). LISTINGS: UL Listed. Meets UL 924, NFPA 101 (current Life Safety Code) , NFPA 70-NEC, FCC Title 47, Part 15, Subpart B and OSHA illumination standards. Indoor damp location 50° to 104°F (10°C to 40°C) listed standard.

WARRANTY: 2-year limited warranty
