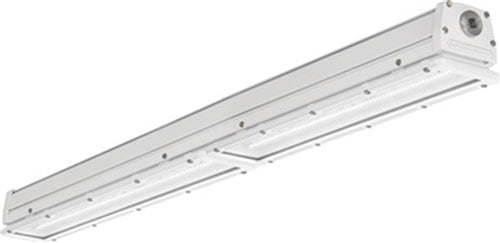

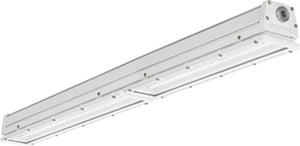

Home > Lithonia Lighting > Lithonia FEX L48 4000LM FPFL MD MVOLT GZ10 40K 80CRI DNAXD CR 48" Heavy Industrial, Enclosed and Gasketed Industrial LED Strip, 4000 Lumens, Flat Poly Frost, Medium Dist, 120-277V, 0-10V Dim, 4000K, 80 CRI, Natural Aluminum
Lithonia FEX L48 4000LM FPFL MD MVOLT GZ10 40K 80CRI DNAXD CR 48" Heavy Industrial, Enclosed and Gasketed Industrial LED Strip, 4000 Lumens, Flat Poly Frost, Medium Dist, 120-277V, 0-10V Dim, 4000K, 80 CRI, Natural Aluminum
Lithonia FEX L48 4000LM FPFL MD MVOLT GZ10 40K 80CRI DNAXD CR 48" Heavy Industrial, Enclosed and Gasketed Industrial LED Strip, 4000 Lumens, Flat Poly Frost, Medium Dist, 120-277V, 0-10V Dim, 4000K, 80 CRI, Natural Aluminum
Regular price
Price:
$622.57
Regular price
Price:
Sale price
$622.57
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate.
Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate.
Click here for Acrylic-Polycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
ENCLOSED CONSTRUCTION:
- Cast & Extruded Aluminum - Polyester Powder Coated
- 18-8 Stainless Steel Hardware
- 304 Stainless steel mounting bracket
- Molded Silicon Gasketing
- 3/4" threaded NPT end-caps standard
- Super durable TGIC thermoset powder coat finish provides 1500 hours salt fog rating. CR (corrosion resistant) optional finish is a five-stage pre-treating and painting process that yields over 5,000 hours salt rating per ASTM B117.
OPTICS & LENS:
- Clear & Frosted Polycarbonate, .125" thick
- Clear & Frosted Tempered Glass, .125" thick
ELECTRICAL:
- MVOLT (120-277V)
- HVOLT (347-480V)
- 0-10V, 10% Dimming
INSTALLATION:
- Angle (wall or ceiling) with optional RMBA
- Pendant with PMP4X option (L24 only) (18" wiring leads exiting monopoint hub)
- Pole (1½" trade size pipe) with optional RMBU
- Surface (ceiling) with standard mounting bracket or optional RMBK
- Surface (wall) with optional RMBK
- Suspended (chain or cable) with standard mounting bracket or optional RMBK
LISTING & RATINGS:
- CSA Certified to meet US and Canadian standards
- Suitable for use in wet locations
- IP65, IP66, IP69K rated per IEC60529
- IP67 rated with optional gasket kit
- NEMA Type 4X rated
- Marine rated (UL1598A, US only)
- IK rated (see chart on page 6)
- 1G vibration rating with standard mounting bracket
- 3G vibration rating with optional rigid mount bracket (RMBK) per ANSI C136.31 (see "Option Value Ordering Restrictions and Notes" on page 3 for details)
- FCC Title 47, Part 15, Subpart B
- 6kV/3kA Surge Rated per ANSI C82.77-5-2015
- NSF Splash Zone 2 and Non-Food Zone rated (excludes RMBA option)
- -40°F (-40°C) to 158°F (70°C) ambient rating. (see chart on page 6)
- U.S. Patent No. D929015
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT
BAA -- Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
ENCLOSED CONSTRUCTION:
- Cast & Extruded Aluminum - Polyester Powder Coated
- 18-8 Stainless Steel Hardware
- 304 Stainless steel mounting bracket
- Molded Silicon Gasketing
- 3/4" threaded NPT end-caps standard
- Super durable TGIC thermoset powder coat finish provides 1500 hours salt fog rating. CR (corrosion resistant) optional finish is a five-stage pre-treating and painting process that yields over 5,000 hours salt rating per ASTM B117.
OPTICS & LENS:
- Clear & Frosted Polycarbonate, .125" thick
- Clear & Frosted Tempered Glass, .125" thick
ELECTRICAL:
- MVOLT (120-277V)
- HVOLT (347-480V)
- 0-10V, 10% Dimming
INSTALLATION:
- Angle (wall or ceiling) with optional RMBA
- Pendant with PMP4X option (L24 only) (18" wiring leads exiting monopoint hub)
- Pole (1½" trade size pipe) with optional RMBU
- Surface (ceiling) with standard mounting bracket or optional RMBK
- Surface (wall) with optional RMBK
- Suspended (chain or cable) with standard mounting bracket or optional RMBK
LISTING & RATINGS:
- CSA Certified to meet US and Canadian standards
- Suitable for use in wet locations
- IP65, IP66, IP69K rated per IEC60529
- IP67 rated with optional gasket kit
- NEMA Type 4X rated
- Marine rated (UL1598A, US only)
- IK rated (see chart on page 6)
- 1G vibration rating with standard mounting bracket
- 3G vibration rating with optional rigid mount bracket (RMBK) per ANSI C136.31 (see "Option Value Ordering Restrictions and Notes" on page 3 for details)
- FCC Title 47, Part 15, Subpart B
- 6kV/3kA Surge Rated per ANSI C82.77-5-2015
- NSF Splash Zone 2 and Non-Food Zone rated (excludes RMBA option)
- -40°F (-40°C) to 158°F (70°C) ambient rating. (see chart on page 6)
- U.S. Patent No. D929015
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT
BAA -- Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
