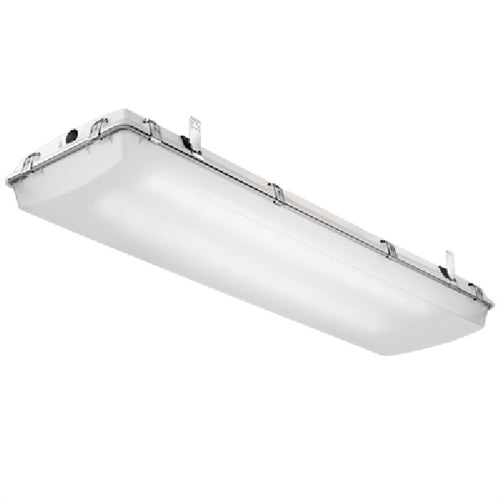

Lithonia FHE L48 18000LM PCL MD MVOLT GZ10 50K 80CRI 115W LED Vapor Tight Fixture, 18000 Lumens, Clear Polycarbonate, Medium Distribution, 120-277V, 0-10V Dimming, 5000K, 80 CRI
Lithonia FHE L48 18000LM PCL MD MVOLT GZ10 50K 80CRI 115W LED Vapor Tight Fixture, 18000 Lumens, Clear Polycarbonate, Medium Distribution, 120-277V, 0-10V Dimming, 5000K, 80 CRI
Regular price
Price:
$821.91
Regular price
Price:
Sale price
$821.91
Unit price
per
MODEL: Lithonia-FHE-LED-110315
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
INTENDED USE -- Ideal for use in food and beverage processing, cold storage, natatoriums and garden centers. Fiberglass enclosure protects fixture while remaining easy to service and clean. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic Environmental Compatibility table for suitable uses.
CONSTRUCTION -- One-piece 5VA rated fiberglass housing with continuous poured-in-place, closedcell gasket. Housing includes integrated heat management rail to optimize LED performance in warmer ambient temperatures. Three piece captive latches lock onto the housing to keep latches from becoming displaced during strenuous cleaning.
OPTICS -- Injection-molded acrylic, impact-resistant diffuser (.080" thick), available in clear or frosted, features side lineal prisms and frosted ends (clear). Frosted lens recommended for lower mounting heights and enhanced visual comfort. UV stabilized polycarbonate diffuser option available (.080" thick) for increased impact resistance. Three piece stainless steel latches (12) keep lens securely fastened.
ELECTRICAL -- Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-480 volt offered with 0-10 volt dimming, allowing granular control when coupled with wireless networking controls. Integral 6kV/3kA surge protection, tested in accordance to IEEE/ANSI standards.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
INSTALLATION -- Luminaire can be ceiling or suspend mounted. Power connection is easily accommodated through pre-drilled holes at each end, watertight plugs ship standard on each end.
Stainless steel mounting straps (standard), included for suspension with aircraft cable (cable not included). Optional stainless steel V-hooks available for chain hanging (chain not included). Mounting straps also accommodate RMKSS or RMKZP accessory for surface mounting.
LISTINGS -- CSA Certified to UL and C-UL standards for ambient temperatures from -40 degree F (-40 degree C) to 104 degree F (40 degree C) when suspended and up to 30 degree C when surface mounted. Suitable for wet location. Covered ceiling not required to maintain wet location listing or IP ratings. IP65, IP66 and IP67 rated and certified to meet NSF Splash Zone 2. NEMA 4X rated. 1500 PSI hose-down.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY -- 5-year limited warranty.
CONSTRUCTION -- One-piece 5VA rated fiberglass housing with continuous poured-in-place, closedcell gasket. Housing includes integrated heat management rail to optimize LED performance in warmer ambient temperatures. Three piece captive latches lock onto the housing to keep latches from becoming displaced during strenuous cleaning.
OPTICS -- Injection-molded acrylic, impact-resistant diffuser (.080" thick), available in clear or frosted, features side lineal prisms and frosted ends (clear). Frosted lens recommended for lower mounting heights and enhanced visual comfort. UV stabilized polycarbonate diffuser option available (.080" thick) for increased impact resistance. Three piece stainless steel latches (12) keep lens securely fastened.
ELECTRICAL -- Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-480 volt offered with 0-10 volt dimming, allowing granular control when coupled with wireless networking controls. Integral 6kV/3kA surge protection, tested in accordance to IEEE/ANSI standards.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
INSTALLATION -- Luminaire can be ceiling or suspend mounted. Power connection is easily accommodated through pre-drilled holes at each end, watertight plugs ship standard on each end.
Stainless steel mounting straps (standard), included for suspension with aircraft cable (cable not included). Optional stainless steel V-hooks available for chain hanging (chain not included). Mounting straps also accommodate RMKSS or RMKZP accessory for surface mounting.
LISTINGS -- CSA Certified to UL and C-UL standards for ambient temperatures from -40 degree F (-40 degree C) to 104 degree F (40 degree C) when suspended and up to 30 degree C when surface mounted. Suitable for wet location. Covered ceiling not required to maintain wet location listing or IP ratings. IP65, IP66 and IP67 rated and certified to meet NSF Splash Zone 2. NEMA 4X rated. 1500 PSI hose-down.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
