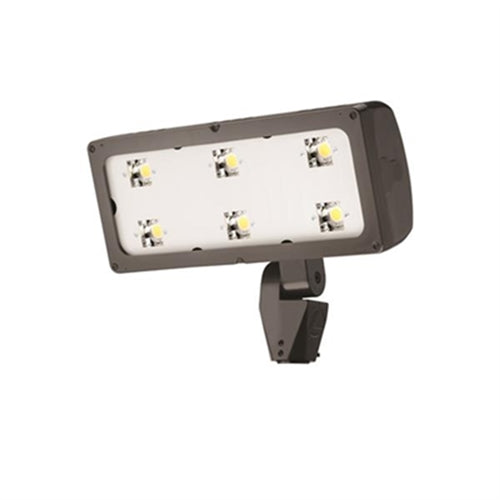

Home > Lithonia Lighting > Lithonia HLF1 LED P5 50K WFL MVOLT VG YKC64 PER7 DBLXD 368W High Lumen LED Floodlight, P5 Performance Package, 5000K, Wide Flood Distribution, 120-277V, Vandal Guard, Yoke with 4ft, 16-3 SO Cord, Seven-Wire Receptacle, Black
Lithonia HLF1 LED P5 50K WFL MVOLT VG YKC64 PER7 DBLXD 368W High Lumen LED Floodlight, P5 Performance Package, 5000K, Wide Flood Distribution, 120-277V, Vandal Guard, Yoke with 4ft, 16-3 SO Cord, Seven-Wire Receptacle, Black
Lithonia HLF1 LED P5 50K WFL MVOLT VG YKC64 PER7 DBLXD 368W High Lumen LED Floodlight, P5 Performance Package, 5000K, Wide Flood Distribution, 120-277V, Vandal Guard, Yoke with 4ft, 16-3 SO Cord, Seven-Wire Receptacle, Black
Regular price
Price:
$2,599.49
Regular price
Price:
Sale price
$2,599.49
Unit price
per
Ordering a Large Quantity?
Request a quote
description

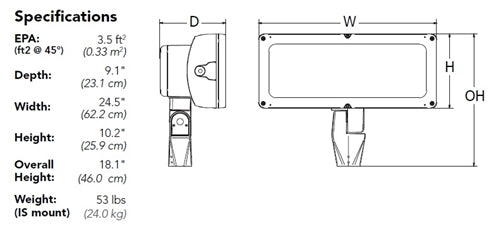

PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
LISTINGS
CSA Certified to meet U.S. and Canadian standards. Suitable for wet locations. Rated for -40 degrees C minimum ambient.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY
5-year limited warranty.
INTENDED USE
The contemporary design of the HLF LED High Lumen Floodlight embodies high performance LED technology with precision optics offering maximum versatility in designing for high output lighting applications. The HLF1 delivers 25,000 to 50,000 lumens. It is ideal for commercial applications including new construction or replacing 400W to 1000W HID floodlights. HLF may be used for lighting large signage, monuments, large building facades large yards, recreational sports fields and many other commercial applications.
CONSTRUCTION
The HLF LED floodlight features rugged die-cast aluminum construction with integral heat sink fins that optimize thermal management through conductive and convective cooling. A die-cast isolated driver compartment protects LED drivers that are mounted in direct contact with the casting away from the LED heat source, to promote low operating temperature and long life. Integral adjustable slipfitter mounts on a 2 3/8" OD tenon. The adjustable slipfitter has an integral junction box for easy installation. The heat sink, housing, lens frame and driver compartment are sealed against moisture and environmental contaminants to IP66. HLF1 is 1.5G vibration rated per ANSI C136.31.
FINISH
Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures superior adhesion as well as a minimum finish thickness of 3 mils. The result is a high-quality finish that is warrantied not to crack or peel.
COASTAL CONSTRUCTION (CCE)
Optional corrosion resistant construction is engineered with added corrosion protection in materials and/or pre-treatment of base material under super durable paint. Provides additional corrosion protection for applications near coastal areas. Finish is salt spray tested to over 5,000 hours per ASTM B117 with scribe rating of 10. Additional lead-times may apply.
OPTICS
HLF features both specular aluminum and silicone based “hybrid" type optics that are engineered for superior field-to-beam ratios, uniformity, and spacing. Seven photometric distributions are available including wide pattern distributions Wide Flood, Medium Flood, and narrow pattern distributions Medium Narrow Flood, Narrow Flood, Spot and Narrow Spot. Optional visors minimize uplight and reduce light trespass.
ELECTRICAL
Light engines consist of chip-on-board (COB) LEDs directly coupled to the housing to maximize heat dissipation and promote long life. LED lumen maintenance is >L86/60,000 hours for WFL/MFL optics and >L85/60,000 hours for Hybrid optics. CCT’s of 3000K, 4000K, and 5000K (minimum 70 CRI) are available. Class 1, continuous dimming 0-10V drivers. 90% and THD <20%. Serviceable 10kV surge protection device meets a minimum Category C low operation (per ANSI/ IEEE C62.41.2).
CONTROLS
HLF features an optional NEMA twist-lock 7-pin photocell receptacle that is compatible with standard twist-lock photocells for dusk to dawn operation or advanced control nodes that provide 0-10V dimming signals. Standard wiring will be per following: Wire 1/2/3 as normal (hot input, switch leg and neutral). Wire 4/Wire 5 wired to dimming leads on driver. Wire6/Wire7 capped inside luminaire.
INSTALLATION
The die-cast integral "IS" mount features an adjustable slipfitter that mounts on a 2 3/8" OD tenon and features a 0 degrees to185 degrees full range tilt adjustment in 5 degrees increments. The slipfitter has an integral junction box and offers easy installation, wiring and precision distribution pattern aiming. A steel yoke "YK" mount (die-formed 1/4" thick plate steel) is available and includes a water tight cord grip and cord. HLF features a glass lens enclosure that is protected to IP66 and is rated for lighting aimed up above 90 degrees. Suitable for mounting within 4 feet of ground.
CONSTRUCTION
The HLF LED floodlight features rugged die-cast aluminum construction with integral heat sink fins that optimize thermal management through conductive and convective cooling. A die-cast isolated driver compartment protects LED drivers that are mounted in direct contact with the casting away from the LED heat source, to promote low operating temperature and long life. Integral adjustable slipfitter mounts on a 2 3/8" OD tenon. The adjustable slipfitter has an integral junction box for easy installation. The heat sink, housing, lens frame and driver compartment are sealed against moisture and environmental contaminants to IP66. HLF1 is 1.5G vibration rated per ANSI C136.31.
FINISH
Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures superior adhesion as well as a minimum finish thickness of 3 mils. The result is a high-quality finish that is warrantied not to crack or peel.
COASTAL CONSTRUCTION (CCE)
Optional corrosion resistant construction is engineered with added corrosion protection in materials and/or pre-treatment of base material under super durable paint. Provides additional corrosion protection for applications near coastal areas. Finish is salt spray tested to over 5,000 hours per ASTM B117 with scribe rating of 10. Additional lead-times may apply.
OPTICS
HLF features both specular aluminum and silicone based “hybrid" type optics that are engineered for superior field-to-beam ratios, uniformity, and spacing. Seven photometric distributions are available including wide pattern distributions Wide Flood, Medium Flood, and narrow pattern distributions Medium Narrow Flood, Narrow Flood, Spot and Narrow Spot. Optional visors minimize uplight and reduce light trespass.
ELECTRICAL
Light engines consist of chip-on-board (COB) LEDs directly coupled to the housing to maximize heat dissipation and promote long life. LED lumen maintenance is >L86/60,000 hours for WFL/MFL optics and >L85/60,000 hours for Hybrid optics. CCT’s of 3000K, 4000K, and 5000K (minimum 70 CRI) are available. Class 1, continuous dimming 0-10V drivers. 90% and THD <20%. Serviceable 10kV surge protection device meets a minimum Category C low operation (per ANSI/ IEEE C62.41.2).
CONTROLS
HLF features an optional NEMA twist-lock 7-pin photocell receptacle that is compatible with standard twist-lock photocells for dusk to dawn operation or advanced control nodes that provide 0-10V dimming signals. Standard wiring will be per following: Wire 1/2/3 as normal (hot input, switch leg and neutral). Wire 4/Wire 5 wired to dimming leads on driver. Wire6/Wire7 capped inside luminaire.
INSTALLATION
The die-cast integral "IS" mount features an adjustable slipfitter that mounts on a 2 3/8" OD tenon and features a 0 degrees to185 degrees full range tilt adjustment in 5 degrees increments. The slipfitter has an integral junction box and offers easy installation, wiring and precision distribution pattern aiming. A steel yoke "YK" mount (die-formed 1/4" thick plate steel) is available and includes a water tight cord grip and cord. HLF features a glass lens enclosure that is protected to IP66 and is rated for lighting aimed up above 90 degrees. Suitable for mounting within 4 feet of ground.
LISTINGS
CSA Certified to meet U.S. and Canadian standards. Suitable for wet locations. Rated for -40 degrees C minimum ambient.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY
5-year limited warranty.
