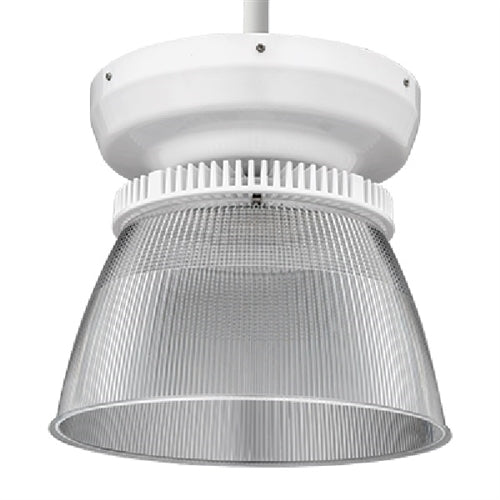

Home > Lithonia Lighting > Lithonia JCBL 18000LM ACCR MVOLT GZ10 40K 80CRI E10WCP PM DWHGXDRound LED High Bay, 18000 Lumens, Clear Acrylic Reflector, Open Bottom Lens, 0-10V Dim, 4000K, 80 CRI, Emergency Battery Back Up, Pendant Mount, Textured white
Lithonia JCBL 18000LM ACCR MVOLT GZ10 40K 80CRI E10WCP PM DWHGXDRound LED High Bay, 18000 Lumens, Clear Acrylic Reflector, Open Bottom Lens, 0-10V Dim, 4000K, 80 CRI, Emergency Battery Back Up, Pendant Mount, Textured white
Lithonia JCBL 18000LM ACCR MVOLT GZ10 40K 80CRI E10WCP PM DWHGXDRound LED High Bay, 18000 Lumens, Clear Acrylic Reflector, Open Bottom Lens, 0-10V Dim, 4000K, 80 CRI, Emergency Battery Back Up, Pendant Mount, Textured white
Regular price
Price:
$1,283.70
Regular price
Price:
Sale price
$1,283.70
Unit price
per
Ordering a large quantity?
Request a quote
description
INTENDED USE
The Lithonia Lighting JCBL LED Highbay is the affordable LED solution for users who prefer a luminaire with the look and feel of a round form factor. Gymnasiums, warehouses, packaging facilities and other industrial applications all benefit from JCBL’s highly efficient design that saves over traditional sources. Certain airborne contaminants can diminish the integrity of acrylic and/ or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses. Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION
JCBL features an aluminum heat sink to maximize heat dissipation and extend the life of the luminaire by maximizing contact with the LEDs. A glass optical enclosure (IP65 rated) protects the LEDS from dust and other air contaminants. Reflector options including aluminum, prismatic acrylic and polycarbonate ship together and easily mount to the heatsink for quick installation.
OPTICS
Reflector and lens options provide maximum versatility and uniformity including up to 8% uplight with reflectors alone. Conical, flat or acrylic drop lenses offer enhanced aesthetics, minimize glare at lower mounting heights and maximize uplight (13%) when paired with acrylic reflectors.
ELECTRICAL
Utilizes 90 degrees C case temperature for maximum life at high temperatures. Less than 20% THD and PF >90. Standard 6kV/3kA(120-347v), 10kV/5kA(347-480v) surge protection, tested in accordance to IEEE/ANSI standards. Input voltages include 120-277, 347-480 without the use of a step down transformer. Lumen maintenance L91 at 60,000 hours. 0-10V dimming standard for a dimming range of 100% to 10% dimming source current is 150 microA.
WIRELESS NETWORKING
XPoint Wireless technology creates a mesh network to ensure communication between fixtures, sensors and wall stations facility-wide. This option provides superior lighting management capabilities including granular control, configuration and custom grouping for increased energy savings.
INSTALLATION

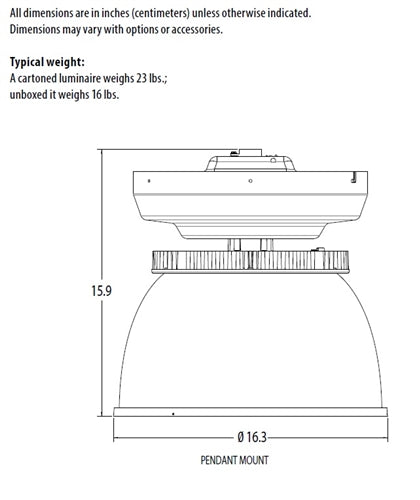

Mounting options include steel hook & cord or 3/4" NPT threaded hub to accommodate stem or cast hook options.
LISTINGS
UL1598/C SA C22 .2 250, Buy American Act, Damp location listed. Suitable for use in ambient temperatures from -40°C up to 55°C .
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY
5-year limited warranty.
The Lithonia Lighting JCBL LED Highbay is the affordable LED solution for users who prefer a luminaire with the look and feel of a round form factor. Gymnasiums, warehouses, packaging facilities and other industrial applications all benefit from JCBL’s highly efficient design that saves over traditional sources. Certain airborne contaminants can diminish the integrity of acrylic and/ or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses. Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION
JCBL features an aluminum heat sink to maximize heat dissipation and extend the life of the luminaire by maximizing contact with the LEDs. A glass optical enclosure (IP65 rated) protects the LEDS from dust and other air contaminants. Reflector options including aluminum, prismatic acrylic and polycarbonate ship together and easily mount to the heatsink for quick installation.
OPTICS
Reflector and lens options provide maximum versatility and uniformity including up to 8% uplight with reflectors alone. Conical, flat or acrylic drop lenses offer enhanced aesthetics, minimize glare at lower mounting heights and maximize uplight (13%) when paired with acrylic reflectors.
ELECTRICAL
Utilizes 90 degrees C case temperature for maximum life at high temperatures. Less than 20% THD and PF >90. Standard 6kV/3kA(120-347v), 10kV/5kA(347-480v) surge protection, tested in accordance to IEEE/ANSI standards. Input voltages include 120-277, 347-480 without the use of a step down transformer. Lumen maintenance L91 at 60,000 hours. 0-10V dimming standard for a dimming range of 100% to 10% dimming source current is 150 microA.
WIRELESS NETWORKING
XPoint Wireless technology creates a mesh network to ensure communication between fixtures, sensors and wall stations facility-wide. This option provides superior lighting management capabilities including granular control, configuration and custom grouping for increased energy savings.
INSTALLATION
Mounting options include steel hook & cord or 3/4" NPT threaded hub to accommodate stem or cast hook options.
LISTINGS
UL1598/C SA C22 .2 250, Buy American Act, Damp location listed. Suitable for use in ambient temperatures from -40°C up to 55°C .
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY
5-year limited warranty.
