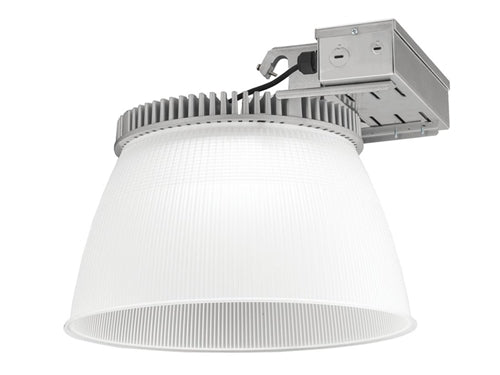

Lithonia JCBL 24L ACFR MV 40K SC6 193 Watts Round LED High Bay 24200 Lumens 6-lamp T5HO Equal 4000K
Lithonia JCBL 24L ACFR MV 40K SC6 193 Watts Round LED High Bay 24200 Lumens 6-lamp T5HO Equal 4000K
Regular price
Price:
$588.40
Regular price
Price:
Sale price
$588.40
Unit price
per
MODEL: Lithonia-JCBL-105111
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
INTENDED USE
The Lithonia Lighting JCBL LED Highbay is the affordable LED solution for users who prefer a luminaire with the look and feel of a round form factor. The JCBL is highly configurable and delivers comfortable and uniform lighting from mounting heights up to 30ft. Gymnasiums, warehouses, packaging facilities and other industrial applications all benefit from JCBL's highly efficient design that saves up to 57+% over traditional sources. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION
JCBL features an aluminum heat sink to maximize heat dissipation and extend the life of the luminaire by maximizing contact with the LEDs. A glass optical enclosure (IP65 rated) protects the LEDS from dust and other air contaminants. Reflector options including aluminum, prismatic acrylic and polycarbonate ship together and easily mount to the heatsink for quick installation.
OPTICS
Reflector and lens options provide maximum versatility and uniformity including up to 8% uplight with reflectors alone. Conical, flat or acrylic drop lenses offer enhanced aesthetics, minimize glare at lower mounting heights and maximize uplight (13%) when paired with acrylic reflectors.
ELECTRICAL
Utilizes 90 degrees C case temperature for maximum life at high temperatures. Less than 20% THD and PF >90. Standard 6kV/3kA(120-347v), 10kV/5kA(347-480v) surge protection, tested in accordance to IEEE/ANSI standards. Input voltages include 120-277, 347-480 without the use of a step down transformer. Lumen maintenance L91 at 60,000 hours. 0-10V dimming standard for a dimming range of 100% to 10% dimming source current is 150 microA.
WIRELESS NETWORKING
XPoint Wireless technology creates a mesh network to ensure communication between fixtures, sensors and wall stations facility-wide. This option provides superior lighting management capabilities including granular control, configuration and custom grouping for increased energy savings.
INSTALLATION

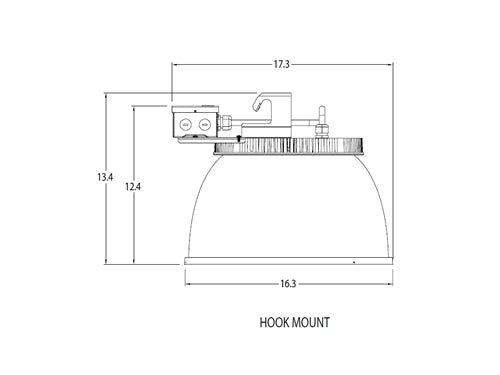

Mounting options include steel hook & cord or 3/4" NPT threaded hub to accommodate stem or cast hook options.
LISTINGS
UL1598/C SA C22 .2 250, Buy American Act, Damp location listed. Suitable for use in ambient temperatures from -40°C up to 55°C .
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY
5-year limited warranty.
The Lithonia Lighting JCBL LED Highbay is the affordable LED solution for users who prefer a luminaire with the look and feel of a round form factor. The JCBL is highly configurable and delivers comfortable and uniform lighting from mounting heights up to 30ft. Gymnasiums, warehouses, packaging facilities and other industrial applications all benefit from JCBL's highly efficient design that saves up to 57+% over traditional sources. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION
JCBL features an aluminum heat sink to maximize heat dissipation and extend the life of the luminaire by maximizing contact with the LEDs. A glass optical enclosure (IP65 rated) protects the LEDS from dust and other air contaminants. Reflector options including aluminum, prismatic acrylic and polycarbonate ship together and easily mount to the heatsink for quick installation.
OPTICS
Reflector and lens options provide maximum versatility and uniformity including up to 8% uplight with reflectors alone. Conical, flat or acrylic drop lenses offer enhanced aesthetics, minimize glare at lower mounting heights and maximize uplight (13%) when paired with acrylic reflectors.
ELECTRICAL
Utilizes 90 degrees C case temperature for maximum life at high temperatures. Less than 20% THD and PF >90. Standard 6kV/3kA(120-347v), 10kV/5kA(347-480v) surge protection, tested in accordance to IEEE/ANSI standards. Input voltages include 120-277, 347-480 without the use of a step down transformer. Lumen maintenance L91 at 60,000 hours. 0-10V dimming standard for a dimming range of 100% to 10% dimming source current is 150 microA.
WIRELESS NETWORKING
XPoint Wireless technology creates a mesh network to ensure communication between fixtures, sensors and wall stations facility-wide. This option provides superior lighting management capabilities including granular control, configuration and custom grouping for increased energy savings.
INSTALLATION
Mounting options include steel hook & cord or 3/4" NPT threaded hub to accommodate stem or cast hook options.
LISTINGS
UL1598/C SA C22 .2 250, Buy American Act, Damp location listed. Suitable for use in ambient temperatures from -40°C up to 55°C .
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY
5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
