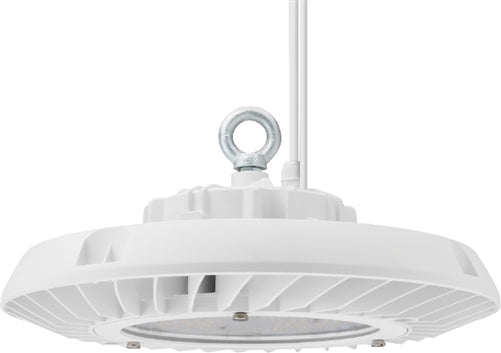

Lithonia JEBL 24L 40K 80CRI WH 181W LED High Bay, 24000 Lumens, 4000K Color Temperature, 80 CRI, White
Lithonia JEBL 24L 40K 80CRI WH 181W LED High Bay, 24000 Lumens, 4000K Color Temperature, 80 CRI, White
Regular price
Price:
$283.03
Regular price
Price:
Sale price
$283.03
Unit price
per
MODEL: Lithonia-JEBL-106713
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- The Lithonia Lighting JEBL LED High bay is an affordable LED solution for users who prefer a luminaire with the look and feel of a round form factor. The JEBL delivers comfortable and uniform lighting from mounting heights up to 30ft. Certain airborne contaminants can diminish the integrity
INTENDED USE -- The Lithonia Lighting JEBL LED High bay is an affordable LED solution for users who prefer a luminaire with the look and feel of a round form factor. The JEBL delivers comfortable and uniform lighting from mounting heights up to 30ft. Certain airborne contaminants can diminish the integrity
of acrylic and/or polycarbonate.
CONSTRUCTION -- JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing. Powder coat corrosion resistant finish provides 500 hours salt fog rating.
Corrosion resistant external hardware standard. Optional clear polycarbonate or diffuse aluminum reflectors available separately.
OPTICS -- A .16" thick clear tempered glass lens protects LEDs. Placement, spacing, and aperture of LEDs provides a 120 degree spread of light. Optional frosted glass and polycarbonate solutions available.
ELECTRICAL -- High-efficiency LEDs. 0-10V dimming standard for a dimming range of 100% to 10%. Input voltage is MVOLT (120-277V) and HVOLT (347-480V). Suitable for 50/60Hz.
Luminaire Surge Protection Level: Designed to withstand up to 6kV/3kA per ANSI C82.77-5-2015.
L90 > 54,000 hours.
CONTROLS -- Dimming and non-dimming sensors, along with X-point and nLightAIR, may be factory installed utilizing the wiring box accessory that is attached to the top of the fixture.
INSTALLATION -- 1/4" NPT eye bolt with 1/2" thick loop and 6' cord with dimming lead provided for easy installation. 3/4" reducer available for stem or hook mounting. Optional surface mount bracket allows flexibility by adjusting in 15 degree increments for a total range of 150 degrees.
Also capable of accepting 3/4" stem or hook.
LISTINGS -- UL/C-UL listed to US and Canadian Safety Standards. Wet location listed. For use under covered ceilings. For use in ambient temperatures from -40 degree F (-40 degree C) to 131 degree F (55 degree C see operational data). IP65 rated. Certified to meet NSF Splash Zone 2.
DesignLights Consortium (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified.
WARRANTY -- 5-year limited warranty.
CONSTRUCTION -- JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing. Powder coat corrosion resistant finish provides 500 hours salt fog rating.
Corrosion resistant external hardware standard. Optional clear polycarbonate or diffuse aluminum reflectors available separately.
OPTICS -- A .16" thick clear tempered glass lens protects LEDs. Placement, spacing, and aperture of LEDs provides a 120 degree spread of light. Optional frosted glass and polycarbonate solutions available.
ELECTRICAL -- High-efficiency LEDs. 0-10V dimming standard for a dimming range of 100% to 10%. Input voltage is MVOLT (120-277V) and HVOLT (347-480V). Suitable for 50/60Hz.
Luminaire Surge Protection Level: Designed to withstand up to 6kV/3kA per ANSI C82.77-5-2015.
L90 > 54,000 hours.
CONTROLS -- Dimming and non-dimming sensors, along with X-point and nLightAIR, may be factory installed utilizing the wiring box accessory that is attached to the top of the fixture.
INSTALLATION -- 1/4" NPT eye bolt with 1/2" thick loop and 6' cord with dimming lead provided for easy installation. 3/4" reducer available for stem or hook mounting. Optional surface mount bracket allows flexibility by adjusting in 15 degree increments for a total range of 150 degrees.
Also capable of accepting 3/4" stem or hook.
LISTINGS -- UL/C-UL listed to US and Canadian Safety Standards. Wet location listed. For use under covered ceilings. For use in ambient temperatures from -40 degree F (-40 degree C) to 131 degree F (55 degree C see operational data). IP65 rated. Certified to meet NSF Splash Zone 2.
DesignLights Consortium (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified.
WARRANTY -- 5-year limited warranty.
