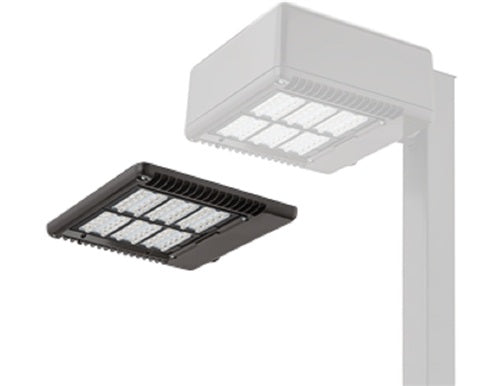

Lithonia KADRD LED 60C 530 40K R3 MVOLT DNATXD 103W LED Contour Soft Square Retrofit Door Area Light, 60 LEDs, 530 mA, 4000K, Type III Distribution, 120-227V, Textured Natural Aluminum Finish

The Contour Series luminaires offer traditional square dayforms with softened edges for a versatile look that complements many applications. The KADRD-LED retrofits any existing 100 - 400W metal halide or high pressure sodium KAD into a high-performance LED luminaire, while realizing typical energy savings up to 70% with expected service life up to 100,000 hours. The KADRD-LED retrofit door simply replaces the existing KAD door containing the glass lens and installs in minutes.

Intended Use

The energy savings and long life of the KADRD-LED area luminaire make it a reliable choice for illuminating streets, walkways, parking lots, and surrounding areas

Construction

Single-piece die-cast, aluminum housing with contoured edges has a 0.12" nominal wall thickness. Die-cast door frame is fully gasketed with one-piece tubular silico

Optics

Precision-molded refractive acrylic lenses are available in four distributions. Light engines are available in standard 4000K or optional 3000K or 5000K (70 CRI) configurations.

Electrical

Light engine consists of high-efficacy LEDs mounted to a metal-core circuit board and aluminum heat sink, ensuring optimal thermal management and long life. Class 1 electronic driver has a power factor >90%, THD <20%, and has an expected life of 100,000 hours with <1% failure rate. Easily-serviceable surge protection device meets a minimum Category C Low (per ANSI/IEEEC62.41.2).

Installation

Retrofit only--mounts directly on existing KAD or KAD-LED housing.
