Home > Lithonia Lighting > Lithonia KADRD LED 60C 700 40K R3 120 DNATXD 134W LED Contour Soft Square Retrofit Door Area Light, 60 LEDs, 700 mA, 4000K, Type III Distribution, 120V, Textured Natural Aluminum Finish

  • Lithonia KADRD LED 60C 700 40K R3 120 DNATXD 134W LED Contour Soft Square Retrofit Door Area Light, 60 LEDs, 700 mA, 4000K, Type III Distribution, 120V, Textured Natural Aluminum Finish
1 1

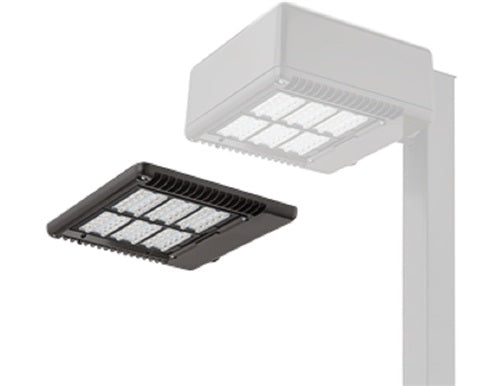

Lithonia KADRD LED 60C 700 40K R3 120 DNATXD 134W LED Contour Soft Square Retrofit Door Area Light, 60 LEDs, 700 mA, 4000K, Type III Distribution, 120V, Textured Natural Aluminum Finish

Lithonia KADRD LED 60C 700 40K R3 120 DNATXD 134W LED Contour Soft Square Retrofit Door Area Light, 60 LEDs, 700 mA, 4000K, Type III Distribution, 120V, Textured Natural Aluminum Finish

Price: $878.59
Price: $878.59

MODEL: Lithonia-KADRD-LED-104196

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

The Contour Series luminaires offer traditional square dayforms with softened edges for a versatile look that complements many applications. The KADRD-LED retrofits any existing 100 - 400W metal halide or high pressure sodium KAD into a high-performance LED luminaire, while realizing typical energy savings up to 70% with expected service life up to 100,000 hours. The KADRD-LED retrofit door simply replaces the existing KAD door containing the glass lens and installs in minutes.

Intended Use

The energy savings and long life of the KADRD-LED area luminaire make it a reliable choice for illuminating streets, walkways, parking lots, and surrounding areas

Construction

Single-piece die-cast, aluminum housing with contoured edges has a 0.12" nominal wall thickness. Die-cast door frame is fully gasketed with one-piece tubular silico

Optics

Precision-molded refractive acrylic lenses are available in four distributions. Light engines are available in standard 4000K or optional 3000K or 5000K (70 CRI) configurations.

Electrical

Light engine consists of high-efficacy LEDs mounted to a metal-core circuit board and aluminum heat sink, ensuring optimal thermal management and long life. Class 1 electronic driver has a power factor >90%, THD <20%, and has an expected life of 100,000 hours with <1% failure rate. Easily-serviceable surge protection device meets a minimum Category C Low (per ANSI/IEEEC62.41.2).

Installation

Retrofit only--mounts directly on existing KAD or KAD-LED housing.
