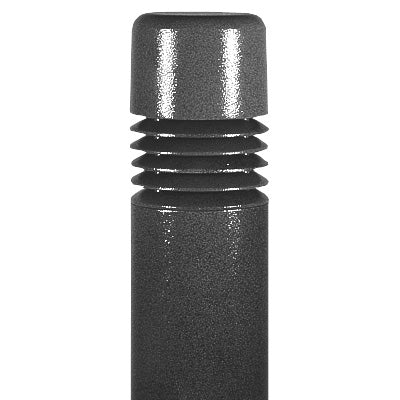

Lithonia KBD8 32TRT LV 120 DBLXD LPI 8" Round Architectural Bollard, 32W Compact Fluorescent, Louver Reflector, 120V, Super Durable Black Finish, Lamp Included

Extruded one-piece aluminum, 0.156" wall thickness. Top cover is 0.156" wall cast aluminum. When louvers are used, top is secured to housing with three concealed allen screws. 42" overall height standard. Closed-cell EPDM gasketing is included. Socket is porcelain, vertically oriented, medium-base pulse-rated porcelain socket with copper alloy, nickel-plated shell and center contact.

Finish: Standard finish is dark bronze (DDB) polyester powder, electrostatically applied and oven-cured. Other colors available as options.

Hydroformed, fluted, anodized, aluminum upper reflector combined with spun aluminum, anodized, flared cone is standard. Cylindrical lower reflectors or cast-aluminum louvers also available. Lens is clear, seamless 100% virgin acrylic, 1/4" wall, flush fitting. Gasketed, fluted glass enclosure, when louvers are used.

High power factor standard. 26W and 32W ballasts are Class P, high-frequency, solid-state. Electrical components are tray-mounted with quick-disconnect plug and are accessible through bottom of bollard. Vertically mounted, positive latch thermoplastic socket.
Installation
Four 1/2" x 11" anchor bolts with double nuts and washers (shipped separately). 4-1/2" bolt circle template included.

UL listed for wet locations. Listed and labeled to comply with Canadian standards (see Options).
Warranty
1-year limited warranty.
