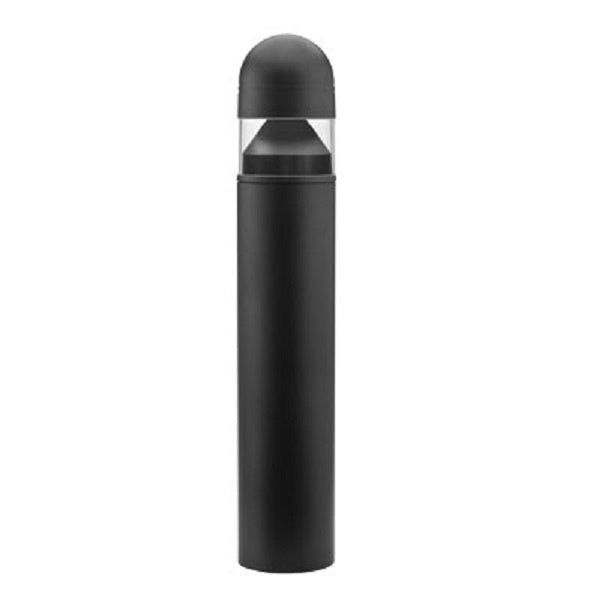

Lithonia KBA6 50S R5 277 DNAXD LPI 6" Round Architectural Bollard, 50W High Pressure Sodium, Type V Distribution, 277V, Magnetic Ballast, Natural Aluminum Super Durable Finish, Lamp Included

Intended Use
For walkways, plazas or pedestrian areas.

Construction

Housing: KB_6: Bottom housing is 0.125" extruded aluminum. Top cover is 0.156" cast aluminum. KB_8: Bottom housing is 0.156" extruded aluminum. 42" overall height standard on KBD and KBA6. 43" overall height standard on KBA8. Flush-fitting lens is 1/4", clear, 100% virgin acrylic. All exposed hardware is tamper-resistant steel protected by a 1,000 hour corrosion-resistant coating. Four 1/2" x 11" anchor bolts with double nuts/washers and 4 1/2" diameter bolt circle template provide for mounting (shipped separately).

Dark bronze (DDB) corrosion-resistant polyester powder finish standard; other architectural colors available.

Optics

Reflector system incorporates an anodized, spun aluminum, flared cone and an anodized, hydroformed, fluted upper reflector providing a Type V (symmetric) cutoff distribution. Optional cylindrical lower reflector or cast aluminum louvers available.

Electrical

All ballasts are copper wound and 100% factory tested. Electrical components are unitized on removable power module and accessible through bottom of bollard. Positive-locking quick disconnect on secondary circuit. Medium-base porcelain socket, 4KV pulse rated.

Listings

UL Listed (standard). CSA Certified (see Options). UL Listed for wet locations.
