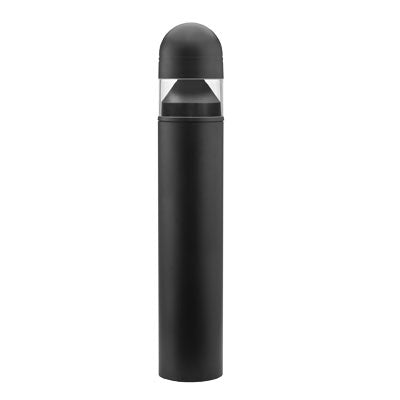

Lithonia KBA8 LED 12C 530 40K ASY 277 DBLBXD 8" Round Architectural LED Bollard, 12 LEDs, 530mA, 4000K Color Temperature, Asymmetric Distribution, 277V, Textured Black Finish

Intended Use
The rugged construction and clean lines of the KBA bollard is ideal for illuminating building entryways, walking paths, and pedestrian plazas, as well as any other location requiring a low mounting height light source with fully cutoff illumination.
Construction
One-piece 8-inch round extruded aluminum shaft with thick side walls for extreme durability, a high-impact clear acrylic lens and welded top cap. Die-cast aluminum mounting ring allows for easy leveling even in sloped locations and a full 360-degree rotation for precise alignment during installation. Three 1/2" x 11" anchor bolts with double nuts and washers and 3-3/4" bolt circle template ensure stability. Overall height is 42" standard.
Finish
Exterior parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering for maximum retention of gloss and luster. A tightly controlled multi-stage process ensures a minimum 3-mil thickness for a finish that can withstand the elements without cracking or peeling. Available in both textured and non-textured finishes.
Optics
Two fully cutoff optical distributions are available: symmetrical and asymmetrical. IP66 sealed LED light engine provides smoothly graduated illumination without any uplight. Light engines are available in standard 4000K (>70 CRI) or optional 3000K (>80 CRI) or 5000K (67 CRI). Limited-wavelength amber LEDs are also available.
Electrical
Light engines consist of high-efficacy LEDs mounted to metal-core circuit boards to maximize heat dissipation and promote long life (L95/100,000 hours at 700mA at 25?C). Class 2 electronic drivers are designed for an expected life of 100,000 hours with < 1% failure rate. Electrical components are mounted on a removable power tray.
Listings
CSA certified to U.S. and Canadian standards. Light engines are IP66 rated. Rated for -40?C minimum ambient. Cold-weather emergency battery backup rated for -20?C minimum ambient.
Note: Specifications subject to change without notice.
