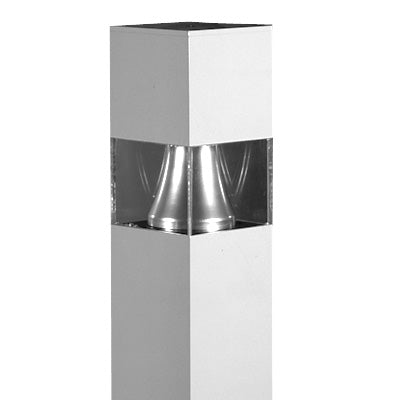

Lithonia KBS8 100S R5 120 DBLXD LPI 8" Square Architectural Bollard, 100W High Pressure Sodium, Type V Distribution, 120V, Magnetic Ballast, Super Durable Black Finish, Lamp Included

Extruded one-piece aluminum, 0.188" wall thickness. Top cover is weldment of 0.188" wall extrusion and 0.250" top plate. 42" overall height standard. Closed-cell EPDM gasketing is included.

Finish: Standard finish is dark bronze (DDB) polyester powder, electrostatically applied and oven-cured. Other colors available as options.

Optics
Hydroformed, fluted, anodized, aluminum upper reflector combined with spun aluminum, anodized, flared cone is standard. Cylindrical lower reflectors or cast-aluminum louvers also available. Lens is clear, seamless 100% virgin acrylic, 1/4" wall, flush fitting. Gasketed, fluted glass enclosure, when louvers are used.

High pressure sodium and metal halide are high-reactance, high-power-factor ballasts. Ballasts are 100% factory-tested for reliable operation. Electrical components are tray-mounted with quick-disconnect plug and are accessible through bottom of bollard.

Socket: Porcelain, vertically oriented, medium-base pulse-rated porcelain socket with copper alloy, nickel-plated shell and center contact.

Installation
Four 1/2" x 11" anchor bolts with double nuts and washers (shipped separately). 4-1/2" bolt circle template included.

Listings
UL listed for wet locations. Listed and labeled to comply with Canadian standards (see Options).

Warranty
1-year limited warranty.
