Home > Lithonia Lighting > Lithonia L3RLED T24 R6 4 inch LED Recessed Housing IC/Non-IC Air-Tight Remodel Construction Only

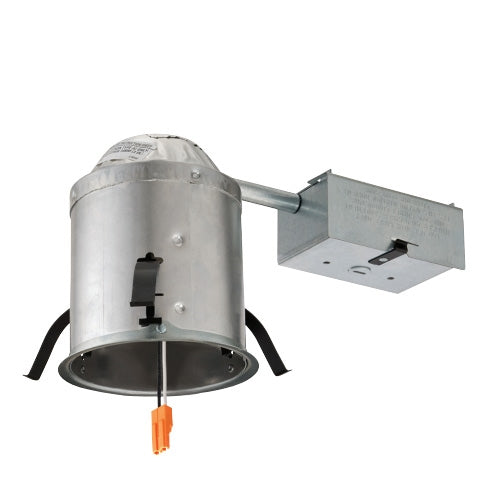

Lithonia L3RLED T24 R6 4 inch LED Recessed Housing IC/Non-IC Air-Tight Remodel Construction Only
Lithonia L3RLED T24 R6 4 inch LED Recessed Housing IC/Non-IC Air-Tight Remodel Construction Only
Regular price
Price:
$29.63
Regular price
Price:
Sale price
$29.63
Unit price
per
MODEL: Lithonia-L3RLED-T24-105445
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
INTENDED USE -- Recessed housing rated IC or Non-IC. For remodel construction only.
Approved for factory assembled wiring only.
Approved for direct burial in insulation.
CONSTRUCTION -- Air-tight standard. Tested to meet current energy codes.
Aluminum foam-gasketed housing with three remodel clips for installation in existing plaster, sheet rock or mechanical ceiling.
Heavy-gauge galvanized steel raceway arm.
Galvanized steel junction box with four built-in Romex clamps. Five 1/2" knockouts with slots for pryout.
Not suitable for pulling wires.
Rated for 90° C.
Ground wire provided.
Removable J-box doors for easy access.
ELECTRICAL -- Quick disconnect provided for power connection to the LED modules.
Paint overspray masked by disposable disconnect plug.
Housing and LED module combination is IC rated and thermally protected.
120 volt only.
INSTALLATION -- Air-tight housing suitable for air-tight installations. Refer to energy codes for proper installations.
2x8 and 2x6 existing ceiling or T-bar ceiling panel installation. Clip adjustment on housing (up to 1/2") allows for flush mounting with ceiling face.
LISTINGS -- UL Listed to US and Canadian safety standards. Damp location listing (See trim selection for wet location listing).
WARRANTY -- 1-year limited warranty.
Approved for factory assembled wiring only.
Approved for direct burial in insulation.
CONSTRUCTION -- Air-tight standard. Tested to meet current energy codes.
Aluminum foam-gasketed housing with three remodel clips for installation in existing plaster, sheet rock or mechanical ceiling.
Heavy-gauge galvanized steel raceway arm.
Galvanized steel junction box with four built-in Romex clamps. Five 1/2" knockouts with slots for pryout.
Not suitable for pulling wires.
Rated for 90° C.
Ground wire provided.
Removable J-box doors for easy access.
ELECTRICAL -- Quick disconnect provided for power connection to the LED modules.
Paint overspray masked by disposable disconnect plug.
Housing and LED module combination is IC rated and thermally protected.
120 volt only.
INSTALLATION -- Air-tight housing suitable for air-tight installations. Refer to energy codes for proper installations.
2x8 and 2x6 existing ceiling or T-bar ceiling panel installation. Clip adjustment on housing (up to 1/2") allows for flush mounting with ceiling face.
LISTINGS -- UL Listed to US and Canadian safety standards. Damp location listing (See trim selection for wet location listing).
WARRANTY -- 1-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
