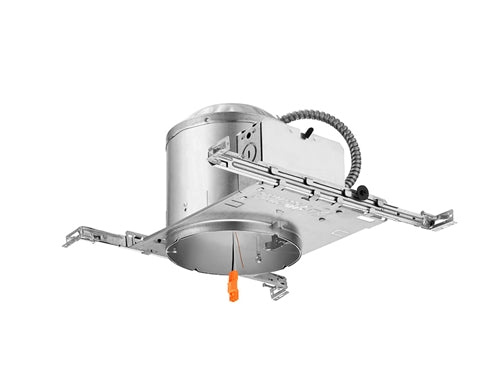

Lithonia L5LED T24 R6 5 inch LED Recessed Housing IC/Non-IC Air-Tight New Construction Only
Lithonia L5LED T24 R6 5 inch LED Recessed Housing IC/Non-IC Air-Tight New Construction Only
Regular price
Price:
$14.73
Regular price
Price:
Sale price
$14.73
Unit price
per
MODEL: Lithonia-L5LED-T24-105446
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
INTENDED USE -- Recessed housing rated IC for new construction only.
Approved for all ceiling and wiring types.
Approved for direct burial in insulation.
CONSTRUCTION -- Air-tight standard. Tested to meet current energy codes.
Aluminum housing with galvanized steel pan.
Galvanized bar hangers span up to 24” o.c. and feature stepped shank nail and positioning guide with integral T-bar locks. Two locking screws hold fixture in position.
Galvanized steel junction box with four built in romex clamps; five ½” and two ¾” knockouts with slots for pryout. Rated for through branch wiring.
Maximum 4 (2in 2out) No 12 AWG conductors. Rated for 90° C.
Ground wire provided. Removable J-box doors for easy access.
ELECTRICAL -- Quick disconnect provided for power connection to the LED modules.
Paint overspray masked by disposable disconnect plug.
Housing and LED module combination is IC rated and thermally protected.
120 volt only.
INSTALLATION -- Air-tight housing suitable for air-tight installations. Refer to energy codes for proper mounting installations.
2 x 8 wood joist or T-bar installation.
Expandable bar hangers allow for off-center mounting in wood joist or T-bar ceilings. Length of 25-1/4” maximum 13-1/4” minimum or cut to fit 9” on center joist construction.
Vertical adjustment of housing allows for flush mounting with ceiling face.
Suitable for ceilings up to 1-1/2” thick.
LISTINGS -- UL Listed to US and Canadian safety standards. Damp location listing (See trim selection for wet location listing).
WARRANTY -- 1-year limited warranty.
Approved for all ceiling and wiring types.
Approved for direct burial in insulation.
CONSTRUCTION -- Air-tight standard. Tested to meet current energy codes.
Aluminum housing with galvanized steel pan.
Galvanized bar hangers span up to 24” o.c. and feature stepped shank nail and positioning guide with integral T-bar locks. Two locking screws hold fixture in position.
Galvanized steel junction box with four built in romex clamps; five ½” and two ¾” knockouts with slots for pryout. Rated for through branch wiring.
Maximum 4 (2in 2out) No 12 AWG conductors. Rated for 90° C.
Ground wire provided. Removable J-box doors for easy access.
ELECTRICAL -- Quick disconnect provided for power connection to the LED modules.
Paint overspray masked by disposable disconnect plug.
Housing and LED module combination is IC rated and thermally protected.
120 volt only.
INSTALLATION -- Air-tight housing suitable for air-tight installations. Refer to energy codes for proper mounting installations.
2 x 8 wood joist or T-bar installation.
Expandable bar hangers allow for off-center mounting in wood joist or T-bar ceilings. Length of 25-1/4” maximum 13-1/4” minimum or cut to fit 9” on center joist construction.
Vertical adjustment of housing allows for flush mounting with ceiling face.
Suitable for ceilings up to 1-1/2” thick.
LISTINGS -- UL Listed to US and Canadian safety standards. Damp location listing (See trim selection for wet location listing).
WARRANTY -- 1-year limited warranty.
