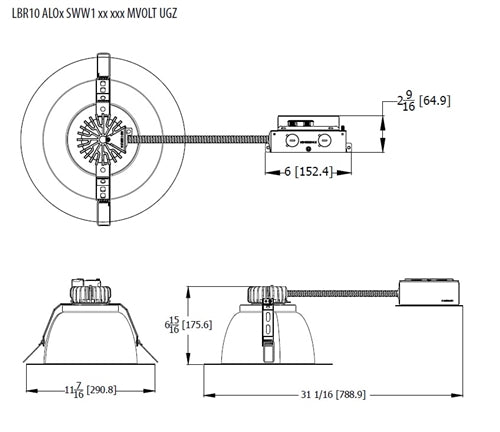

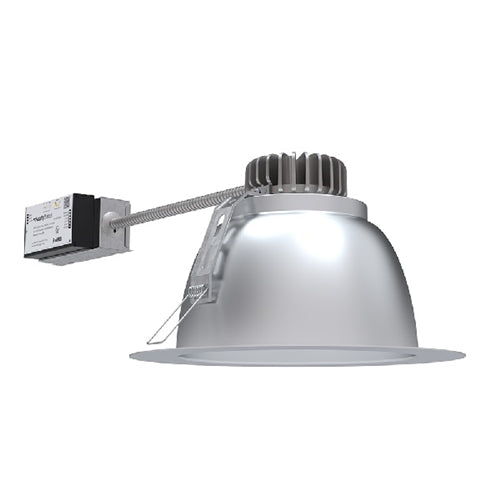

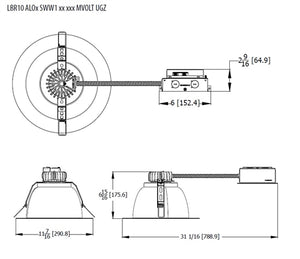

Lithonia LBR10 ALO4 SWW1 AR TRW LSS MWD MVOLT UGZ 10" Round Retrofit Downlight, 4000/4500/5000 Adjustable Lumen, Switchable CCT 3000/3500/4000/5000K, Clear Reflector, White Painted Flange, Semi-Specular Reflector, Medium Wide Dist, Dim to 10%
Lithonia LBR10 ALO4 SWW1 AR TRW LSS MWD MVOLT UGZ 10" Round Retrofit Downlight, 4000/4500/5000 Adjustable Lumen, Switchable CCT 3000/3500/4000/5000K, Clear Reflector, White Painted Flange, Semi-Specular Reflector, Medium Wide Dist, Dim to 10%
Regular price
Price:
$151.81
Regular price
Price:
Sale price
$151.81
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Retrofit, remodel, and new construction mounting types. See table for compatible ceiling openings and thickness range.
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Retrofit, remodel, and new construction mounting types. See table for compatible ceiling openings and thickness range.
Optional goof rings available for additional overlap trim coverage.
1/2"-1-1/2" ceiling thickness
25 degrees ambient temperature
IC rated up to 1000lm
OPTICS -- 55 degree cutoff
New construction frame accessories approved for 8 (4 in/4 out) No. 12 AWG conductors rated for
90 degrees C through wiring.
1.0 S/MH standard (wallwash reflector available)
80CRI standard (90CRI optional)
ELECTRICAL -- Adjustable lumen output with three module options. Fixed lumen options also available.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% or 1% min dimming level)
100LPW typical
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
L80 at 60,000 hours
3 SDCM
LISTINGS -- Certified to US and Canadian safety standards. Title 24 compliant (90CRI, up to 1000lm)
Damp location standard (Wet location, covered ceiling optional). Some configurations are ENERGY STAR certified, please visit www.energystar.gov for specific products. TAA compliant. UFC (3-530-01) specification compliant for power factor and THD. GSA P100 6.2.4 compliant for power quality at full output; compliant up to 2000lm at fully dimmed output.
WARRANTY -- 5-year limited warranty.
1/2"-1-1/2" ceiling thickness
25 degrees ambient temperature
IC rated up to 1000lm
OPTICS -- 55 degree cutoff
New construction frame accessories approved for 8 (4 in/4 out) No. 12 AWG conductors rated for
90 degrees C through wiring.
1.0 S/MH standard (wallwash reflector available)
80CRI standard (90CRI optional)
ELECTRICAL -- Adjustable lumen output with three module options. Fixed lumen options also available.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% or 1% min dimming level)
100LPW typical
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
L80 at 60,000 hours
3 SDCM
LISTINGS -- Certified to US and Canadian safety standards. Title 24 compliant (90CRI, up to 1000lm)
Damp location standard (Wet location, covered ceiling optional). Some configurations are ENERGY STAR certified, please visit www.energystar.gov for specific products. TAA compliant. UFC (3-530-01) specification compliant for power factor and THD. GSA P100 6.2.4 compliant for power quality at full output; compliant up to 2000lm at fully dimmed output.
WARRANTY -- 5-year limited warranty.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
