Home > Lithonia Lighting > Lithonia LBR4 ALO2 SWW1 AR TRW LSS MWD MVOLT UGZ 4" Round Retrofit Downlight, 1000/1500/2000 Lumens, Switchable CCT, Clear Reflector, White Painted Flange, Semi-Specular Reflector Finish, Medium Wide Distribution, 120-277V, Univ Dim to 10%

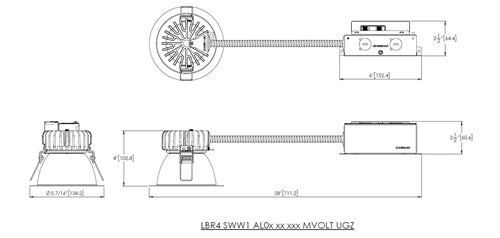

Lithonia LBR4 ALO2 SWW1 AR TRW LSS MWD MVOLT UGZ 4" Round Retrofit Downlight, 1000/1500/2000 Lumens, Switchable CCT, Clear Reflector, White Painted Flange, Semi-Specular Reflector Finish, Medium Wide Distribution, 120-277V, Univ Dim to 10%
Lithonia LBR4 ALO2 SWW1 AR TRW LSS MWD MVOLT UGZ 4" Round Retrofit Downlight, 1000/1500/2000 Lumens, Switchable CCT, Clear Reflector, White Painted Flange, Semi-Specular Reflector Finish, Medium Wide Distribution, 120-277V, Univ Dim to 10%
Regular price
Price:
$87.40
Regular price
Price:
Sale price
$87.40
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION
Retrofit, remodel, and new construction mounting types. See table for compatible ceiling openings and thickness range.
INTENDED USE
Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION
Retrofit, remodel, and new construction mounting types. See table for compatible ceiling openings and thickness range.
Optional goof rings available for additional overlap trim coverage.
1/2"-1-1/2" ceiling thickness
25 degreesC ambient temperature
IC rated up to 1000lm
OPTICS
55 degrees cutoff
New construction frame accessories approved for 8 (4 in/4 out) No. 12 AWG conductors rated for 90 degreesC through wiring.
80CRI standard (90CRI optional)
ELECTRICAL
Adjustable lumen output with four module options. Fixed lumen options also available.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% or 1% min dimming level)
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V
80 at 60,000 hours
3 SDC
LISTINGS
Certified to US and Canadian safety standards. Damp location standard (Wet Location (WL) optional, requires covered ceiling). Some configurations are ENERGY STAR certified, please visit www.energystar.gov for specific products. TAA compliant. UFC (3-530-01) specification compliant for power factor and THD. GSA P100 6.2.4 compliant for power quality at full output; compliant up to 2000lm at fully dimmed output.
Title 24 compliant (90CRI, up to 1000lm).
WARRANTY
5-year limited warranty.
1/2"-1-1/2" ceiling thickness
25 degreesC ambient temperature
IC rated up to 1000lm
OPTICS
55 degrees cutoff
New construction frame accessories approved for 8 (4 in/4 out) No. 12 AWG conductors rated for 90 degreesC through wiring.
80CRI standard (90CRI optional)
ELECTRICAL
Adjustable lumen output with four module options. Fixed lumen options also available.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% or 1% min dimming level)
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V
80 at 60,000 hours
3 SDC
LISTINGS
Certified to US and Canadian safety standards. Damp location standard (Wet Location (WL) optional, requires covered ceiling). Some configurations are ENERGY STAR certified, please visit www.energystar.gov for specific products. TAA compliant. UFC (3-530-01) specification compliant for power factor and THD. GSA P100 6.2.4 compliant for power quality at full output; compliant up to 2000lm at fully dimmed output.
Title 24 compliant (90CRI, up to 1000lm).
WARRANTY
5-year limited warranty.
