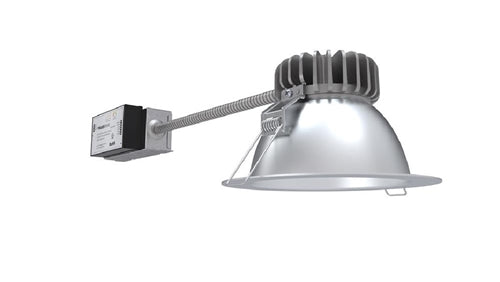

Lithonia LBR6 ALO2 SWW1 AR LSS MWD MVOLT UGZ E10WCPR 6" Round LED Retrofit Downlight, 1000/1500/2000 Lumen, 3000K-3500K-4000K-5000K, Clear Reflector, Self-Flanged Semi-Specular Reflector, Medium Wide Distribution, 120-277V, Dim to 10% 0-10V
Lithonia LBR6 ALO2 SWW1 AR LSS MWD MVOLT UGZ E10WCPR 6" Round LED Retrofit Downlight, 1000/1500/2000 Lumen, 3000K-3500K-4000K-5000K, Clear Reflector, Self-Flanged Semi-Specular Reflector, Medium Wide Distribution, 120-277V, Dim to 10% 0-10V
Regular price
Price:
$250.22
Regular price
Price:
Sale price
$250.22
Unit price
per
MODEL: Lithonia-LBR6-ALO-110790
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Retrofit, remodel, and new construction mounting types. See table for compatible ceiling openings and thickness range.
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Retrofit, remodel, and new construction mounting types. See table for compatible ceiling openings and thickness range.
Optional goof rings available for additional overlap trim coverage.
1/2"-1-1/2" ceiling thickness
25 degrees ambient temperature
IC rated up to 1000lm
OPTICS -- LEDs are binned to a 3-step Mac Adam Ellipse. 55 degrees cutoff
New construction frame accessories approved for 8 (4 in/4 out) No. 12 AWG conductors rated for
90 degrees C through wiring.
80CRI standard (90CRI optional)
UGR -- UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996
Discomfort Glare in Interior Lighting. UGR FAQ
ELECTRICAL -- Adjustable lumen output with four module options. Fixed lumen options also available.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% or 1% min dimming level)
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
LUMEN MAINTENANCE -- L80 at 60,000 hours
LISTINGS -- Certified to US and Canadian safety standards. Damp location standard (Wet Location (WL) optional, requires covered ceiling). Some configurations are ENERGY STAR certified, please visit www.energystar.gov for specific products. TAA compliant. UFC (3-530-01) specification compliant for power factor and THD. GSA P100 6.2.4 compliant for power quality at full output; compliant up to 2000lm at fully dimmed output. Drivers are ROHS compliant
Title 24 compliant (90CRI, up to 1000lm).
WARRANTY -- 5-year limited warranty.
1/2"-1-1/2" ceiling thickness
25 degrees ambient temperature
IC rated up to 1000lm
OPTICS -- LEDs are binned to a 3-step Mac Adam Ellipse. 55 degrees cutoff
New construction frame accessories approved for 8 (4 in/4 out) No. 12 AWG conductors rated for
90 degrees C through wiring.
80CRI standard (90CRI optional)
UGR -- UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996
Discomfort Glare in Interior Lighting. UGR FAQ
ELECTRICAL -- Adjustable lumen output with four module options. Fixed lumen options also available.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% or 1% min dimming level)
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
LUMEN MAINTENANCE -- L80 at 60,000 hours
LISTINGS -- Certified to US and Canadian safety standards. Damp location standard (Wet Location (WL) optional, requires covered ceiling). Some configurations are ENERGY STAR certified, please visit www.energystar.gov for specific products. TAA compliant. UFC (3-530-01) specification compliant for power factor and THD. GSA P100 6.2.4 compliant for power quality at full output; compliant up to 2000lm at fully dimmed output. Drivers are ROHS compliant
Title 24 compliant (90CRI, up to 1000lm).
WARRANTY -- 5-year limited warranty.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
