Home > Lithonia Lighting > Lithonia LBR8 ALO3 SWW1 AR LSS MWD MVOLT 90CRI UGZ 8" Round Retrofit Downlight, Switchable Lumens and CCT, Clear, Semi-Specular, Medium Wide (1.0 s/mh), 120-277V, 90 CRI, Dim to 10% 0-10V

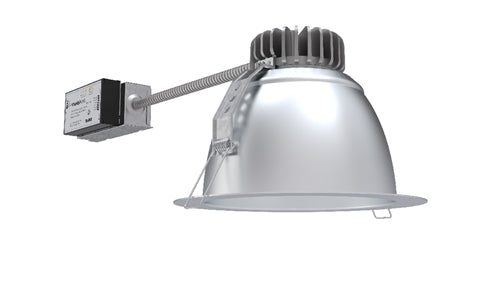

Lithonia LBR8 ALO3 SWW1 AR LSS MWD MVOLT 90CRI UGZ 8" Round Retrofit Downlight, Switchable Lumens and CCT, Clear, Semi-Specular, Medium Wide (1.0 s/mh), 120-277V, 90 CRI, Dim to 10% 0-10V
Lithonia LBR8 ALO3 SWW1 AR LSS MWD MVOLT 90CRI UGZ 8" Round Retrofit Downlight, Switchable Lumens and CCT, Clear, Semi-Specular, Medium Wide (1.0 s/mh), 120-277V, 90 CRI, Dim to 10% 0-10V
Regular price
Price:
$111.70
Regular price
Price:
Sale price
$111.70
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Retrofit, remodel, and new construction mounting types. See table for compatible ceiling openings and thickness range.
Optional goof rings available for additional overlap trim coverage.
1/2"-1-1/2" ceiling thickness
25 degrees ambient temperature
IC rated up to 1000lm
OPTICS -- 55 degrees cutoff
New construction frame accessories approved for 8 (4 in/4 out) No. 12 AWG conductors rated for 90 degrees C through wiring.
80CRI standard (90CRI optional)
ELECTRICAL -- Adjustable lumen output with four module options. Fixed lumen options also available.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% or 1% min dimming level)
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
L80 at 60,000 hours
3 SDCM
LISTINGS -- Certified to US and Canadian safety standards. Title 24 compliant (90CRI, up to 1000lm)
Damp location standard (Wet Location (WL) optional, requires covered ceiling). Some configurations are ENERGY STAR certified. TAA compliant. UFC (3-530-01) specification compliant for power factor and THD. GSA P100 6.2.4 compliant for power quality at full output; compliant up to 2000lm at fully dimmed output.
WARRANTY -- 5-year limited warranty.
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Retrofit, remodel, and new construction mounting types. See table for compatible ceiling openings and thickness range.
Optional goof rings available for additional overlap trim coverage.
1/2"-1-1/2" ceiling thickness
25 degrees ambient temperature
IC rated up to 1000lm
OPTICS -- 55 degrees cutoff
New construction frame accessories approved for 8 (4 in/4 out) No. 12 AWG conductors rated for 90 degrees C through wiring.
80CRI standard (90CRI optional)
ELECTRICAL -- Adjustable lumen output with four module options. Fixed lumen options also available.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% or 1% min dimming level)
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
L80 at 60,000 hours
3 SDCM
LISTINGS -- Certified to US and Canadian safety standards. Title 24 compliant (90CRI, up to 1000lm)
Damp location standard (Wet Location (WL) optional, requires covered ceiling). Some configurations are ENERGY STAR certified. TAA compliant. UFC (3-530-01) specification compliant for power factor and THD. GSA P100 6.2.4 compliant for power quality at full output; compliant up to 2000lm at fully dimmed output.
WARRANTY -- 5-year limited warranty.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
