Home > Lithonia Lighting > Lithonia LDN3SQ 27/10 120 UGZ HSG 3 Inch Square Downlight LED, 2700K Color Temperature, 1000 Lumens, 120V, Universal Dimming to 1%, Housing Only

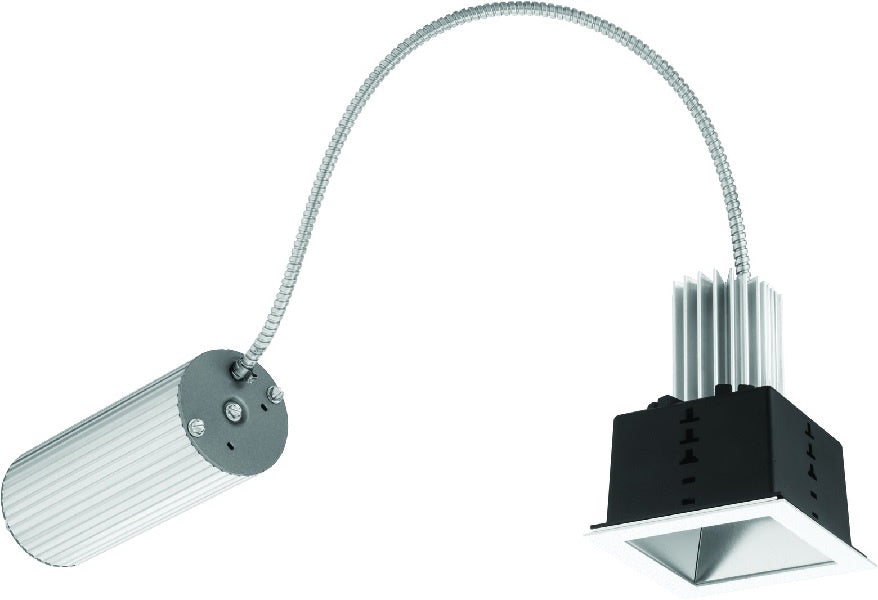

Lithonia LDN3SQ 27/10 120 UGZ HSG 3 Inch Square Downlight LED, 2700K Color Temperature, 1000 Lumens, 120V, Universal Dimming to 1%, Housing Only
Lithonia LDN3SQ 27/10 120 UGZ HSG 3 Inch Square Downlight LED, 2700K Color Temperature, 1000 Lumens, 120V, Universal Dimming to 1%, Housing Only
Regular price
Price:
$125.37
Regular price
Price:
Sale price
$125.37
Unit price
per
MODEL: Lithonia-LDN3SQ-106856
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Install from below construction standard.
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Install from below construction standard.
Additional mounting options available including new construction mounting pan.
Ambient operating temperature: 25 degreeC. High ambient option available.
Light engine and driver are accessible from above or below ceiling.
Passive cooling thermal management
Max ceiling thickness 1-1/4"
OPTICS -- 3 SDCM; 80 CRI typical
Diffusing lens covers optical chamber
55 degree cutoff to source and source image
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes.
ELECTRICAL -- 120V TRIAC or ELV dimming and Multi-volt 0-10V dimming available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled
70% lumen maintenance at 50,000 hours
Luminaire accepts parallel and branch circuit control wiring.
LISTINGS -- Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional).
BUY AMERICAN -- This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT.
WARRANTY -- 5-year limited warranty.
Ambient operating temperature: 25 degreeC. High ambient option available.
Light engine and driver are accessible from above or below ceiling.
Passive cooling thermal management
Max ceiling thickness 1-1/4"
OPTICS -- 3 SDCM; 80 CRI typical
Diffusing lens covers optical chamber
55 degree cutoff to source and source image
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes.
ELECTRICAL -- 120V TRIAC or ELV dimming and Multi-volt 0-10V dimming available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled
70% lumen maintenance at 50,000 hours
Luminaire accepts parallel and branch circuit control wiring.
LISTINGS -- Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional).
BUY AMERICAN -- This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT.
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
